Electric Hydraulic Battery Powered Scissor Lift Platform Table Max Lifting Height 8m

Large Image : Electric Hydraulic Battery Powered Scissor Lift Platform Table Max Lifting Height 8m

Product Details:

Place of Origin:	Shandong, China
Brand Name:	HUAQI
Model Number:	scissor lift

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$6,500.00/sets 1-9 sets
Packaging Details:	* Wooden box with Standard Export Packing <br>* Film plastic and wooden crate with manufacturer logo outsides. <br>* All of the productions are inspected carefully by QC before delivery.
Supply Ability:	1000 Set/Sets per Month

Contact Now

Electric Hydraulic Battery Powered Scissor Lift Platform Table Max Lifting Height 8m

Description

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C	Showroom Location:	Canada, Turkey, Germany, Saudi Arabia
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Engine, Pump	Condition:	New
Rated Loading Capacity(kg):	320kg	Hoisting Speed:	0-34M/MIN
Max Lifting Height:	8m	Dimension(LWH):	2.71.651.7m
Loder Weight:	Approx. 2000kg	Warranty:	1 Year
UNIQUE SELLING POINT:	High Operating Efficiency	Weight (KG):	2300 Kg
Product Name:	Lift Platform	Extension Platform:	900mm
Lowest Height:	1700mm (excluding Guardrail)	Lifting Oil Pump Motor Power:	48V/4.5kw
Moving Crawler:	350mm*2400mm	Platform Frame:	18# Channel Steel
Keyword:	Aerail Work Platform	Name:	Towble Boom Lift
Name:	Mobile Hydraulic Hoist	Port:	Qingdao,Shanghai,Guangzhou

Discounted

Product Description

Aerial Work 4m 6m 12m Battery Powered 220v Mobile Electric Hydraulic Self Propelled Scissor Lift Platform Table

High Reach Capability: With a maximum working height of 8 meters, this scissor lift allows efficient access to elevated work areas, making it ideal for various tasks at elevated heights. Compact and Maneuverable: The scissor lift's dimensions of 2.71.651.7m and 350mm*2400mm rubber-coated steel wire moving tracks enable smooth movement and operation in tight spaces and restricted job sites. Robust Load Capacity: With a rated load of 320kg and a sturdy 18# channel steel platform frame, the scissor lift ensures safe and secure handling of heavy materials during work. Efficient Lifting System: Equipped with a 48V/4.5kw lifting oil pump motor, this scissor lift provides powerful and precise lifting operations, increasing productivity and reliability.

Specification

No.	Project Name	Technical Parameters
0	Overall Dimension	2.71.651.7m
1	Working Platform	2400*1170mm
2	Extension Platform	900mm
2	Lowest Height	1700mm (excluding guardrail)
3	Maximum Working Height	8m
4	Platform Height	6m
4	Rated Load	320kg
5	Lifting Oil Pump Motor Power	48V/4.5kw
6	Rubber-coated Steel Wire Moving Tracks	350mm*2400mm
7	Platform Frame	18# channel steel
8	Electrical System	Circuit breaker, relays, charger, travel switch, etc.
9	Movement Mode	Fully automatic walking
10	Overall Dimension	Length 2700 * Width 1650 * Height 1700 (mm)
11	Equipment Weight	Approx. 2300kg
12	Maintenance-free Battery	6V200ah8 pieces

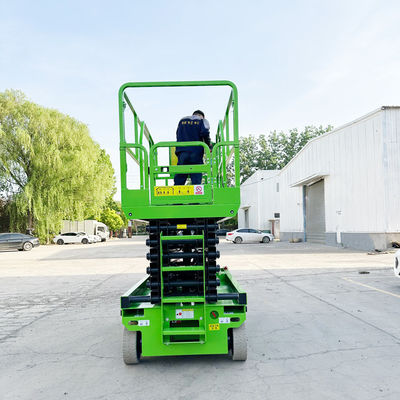

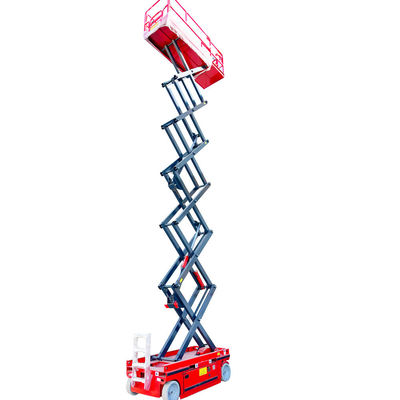

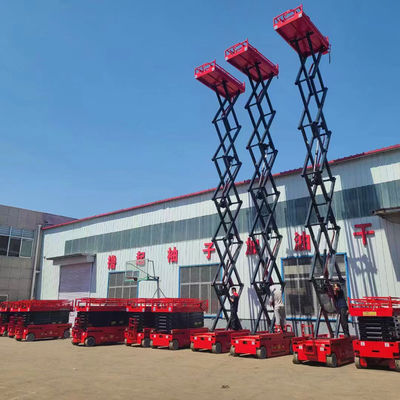

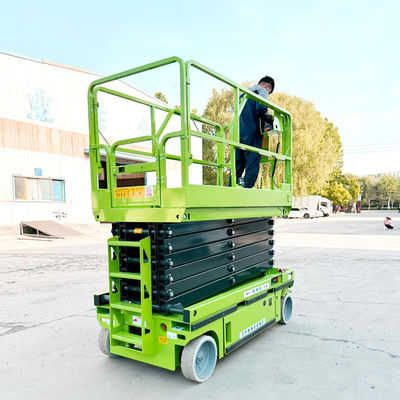

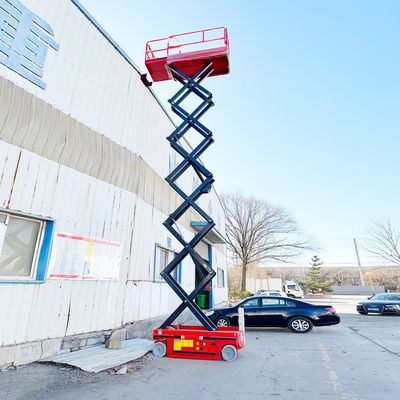

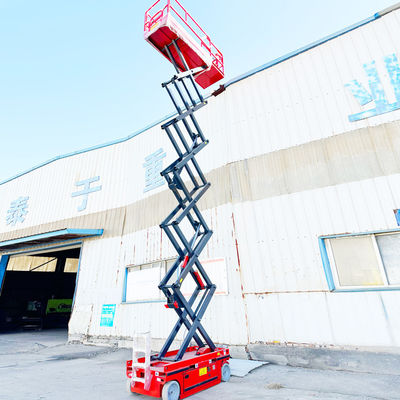

Details Images

Company Profile

Product packaging

Certifications

FAQ

1.Q:Can the factory support mass production? Can i purchase a customized sample first? A:Dear friends, our company can support mass production. It can mass produce 200+scissor lift in one month, can support customization, can customize colors and logos, etc. 2.Q:Can it be transported to my door? I want to get my favorite mini excavator soon? A:Of course, my friend, but if your family is located very close to the port, we suggest that you can go directly to the port to transport your goods, so you can save a lot of money! If the distance is long, you can find an inland transportation company by yourself, and we can communicate with him; we can also find an agency for you, but the toll will be very high (not recommended)during transportation, we will not charge any intermediate fees and additional service fees other than freight. We just want you to get your favorite scissor lift earlier. 3.Q:How can i guarantee after-sales after i buy it? A:Dear friends, our scissor lift has a one-year/1000h work warranty period. During this time, if there is any problem
