320kg Rated Loading Capacity 12M Double 6M To 14M Trailer Lift Aerial Work Platform

Large Image : 320kg Rated Loading Capacity 12M Double 6M To 14M Trailer Lift Aerial Work Platform

Product Details:

Place of Origin:	Shandong, China
Brand Name:	HUAQI
Model Number:	scissor lift

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$2,000.00/sets >=1 sets
Packaging Details:	* Wooden box with Standard Export Packing <br>* Film plastic and wooden crate with manufacturer logo outsides. <br>* All of the productions are inspected carefully by QC before delivery.
Supply Ability:	1000 Set/Sets per Month

Contact Now

320kg Rated Loading Capacity 12M Double 6M To 14M Trailer Lift Aerial Work Platform

Description

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C	Showroom Location:	Canada, Turkey, Germany, Saudi Arabia
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Engine, Pump	Condition:	New
Rated Loading Capacity(kg):	320kg	Hoisting Speed:	0-34M/MIN
Max Lifting Height:	10m	Dimension(LWH):	2400*1170mm
Loder Weight:	Approx. 2600kg	Warranty:	1 Year
UNIQUE SELLING POINT:	High Operating Efficiency	Weight (KG):	2300 Kg
Product Name:	Lift Platform	Extension Platform:	900mm
Lowest Height:	1750mm (excluding Guardrail)	Lifting Oil Pump Motor Power:	48V/4.5kw
Moving Crawler:	350mm*2400mm	Platform Frame:	18# Channel Steel
Keyword:	Aerail Work Platform	Name:	Towble Boom Lift
Name:	Mobile Hydraulic Hoist	Port:	Qingdao,Shanghai,Guangzhou

Product Description

Trailer Lift Aerial Work Platform 12M Double 6M To 14M Mobile Mini Hydraulic Elevator Scissor Lift Table Aerial Work Platform

Extended Working Range: With a maximum working height of 8m and a platform height of 10m, this scissor lift provides an extended reach for versatile tasks at elevated levels. Sturdy Construction: The platform is entirely made of Q355 steel, ensuring exceptional strength and durability, making it suitable for heavy-duty operations. Enhanced Safety Features: The scissor lift offers a minimum height of 1750mm (excluding guardrail) and a rated load of 320kg, ensuring safe and stable operations for workers and materials. Efficient Lifting System: Equipped with a 48V/4.5kw lifting oil pump motor and a fully automatic walking system, the scissor lift ensures smooth and precise lifting, enhancing productivity and safety.

Specification

No.	Project Name	Technical Parameters	Remarks
1	Working Platform	2400*1170mm	Note: Platform made of Q355 steel
2	Extension Platform	900mm
2	Lowest Height	1750mm (excluding guardrail)
3	Maximum Working Height	8m
4	Platform Height	10m
5	Rated Load	320kg
6	Lifting Oil Pump Motor Power	48V/4.5kw
7	Full Steel Wire Moving Tracks	350mm*2400mm
8	Platform Frame	18# channel steel
9	Electrical System	Circuit breaker, relays, charger, travel switch, etc.
10	Movement Mode	Fully automatic walking
11	Overall Dimension	Length 2700 * Width 1650 * Height 1820 (mm)
12	Equipment Weight	Approx. 2600kg
13	Maintenance-free Battery	Maintenance-free 6V8200ah

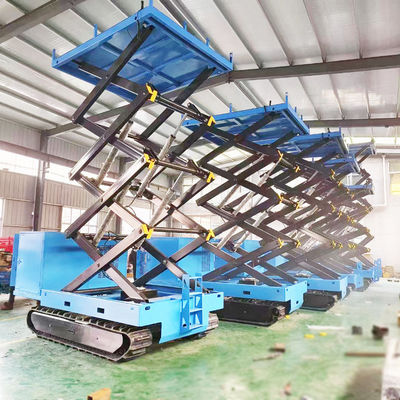

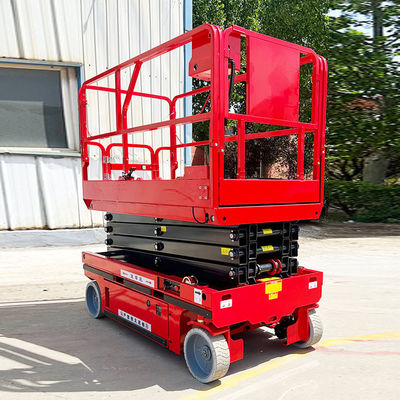

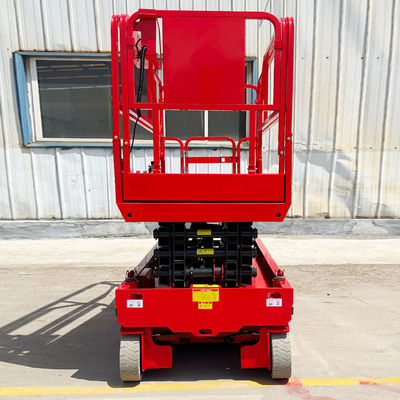

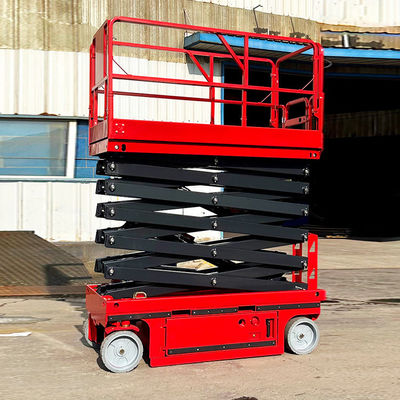

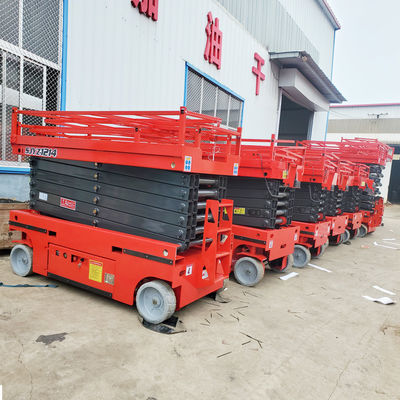

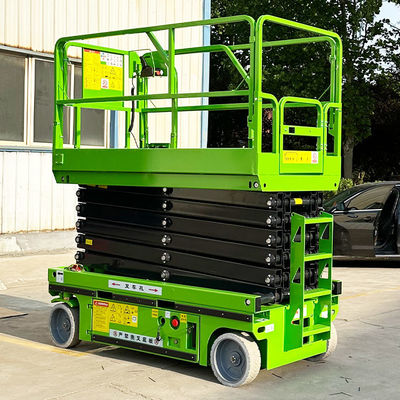

Details Images

Company Profile

Product packaging

Certifications

FAQ

1.Factory We are factory Scissor Lift manufacturer. 2. Warranty Our Scissor Lift have a one year quality warranty. 3.Markets We had sold our Scissor Lift to USA, Canada, Brizal, German, Spain, France, Italy, Dubai, Malaysia, India,Australia etc.. 4. Packing Full container loading with 6 pcs Scissor Lift, for LCL shipping, we'd pack the excavator with wooden packing. 5. Lead time For stocked Scissor Lift, we could ship the Scissor Lift within 7 days after payment, for customized Scissor Lift, we need some more days to customized them and shipping within 10 days.
