Upgrade Your Rescue Equipment Project with 4M Maximum Lifting Height Scissor Lift

Large Image : Upgrade Your Rescue Equipment Project with 4M Maximum Lifting Height Scissor Lift

Product Details:

Place of Origin:	Shandong, China
Brand Name:	HUAQI

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$3,500.00/sets 1-9 sets
Packaging Details:	* Wooden box with Standard Export Packing <br>* Film plastic and wooden crate with manufacturer logo outsides. <br>* All of the productions are inspected carefully by QC before delivery.
Supply Ability:	1000 Set/Sets per Month

Contact Now

Upgrade Your Rescue Equipment Project with 4M Maximum Lifting Height Scissor Lift

Description

Applicable Industries:	Hotels, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Energy & Mining, Advertising Company	Showroom Location:	France, Viet Nam, Spain, South Africa
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	New Product 2023	Warranty Of Core Components:	1 Year
Core Components:	PLC	Condition:	New
Rated Loading Capacity(kg):	320 Kg	Hoisting Speed:	4.5m/min
Max Lifting Height:	4m	Dimension(LWH):	270016001460 Mm
Loder Weight:	320kg	Warranty:	1 Year
UNIQUE SELLING POINT:	High Load Moment	Weight (KG):	2000 Kg
Maximum Lifting Height:	4M	Rated Load:	320kg
Equipment Weight:	2000kg	Motor Power:	4.0kw
Lifting Speed:	4.5m/min	Moving Speed:	15-30m/min
Gradeability:	25°	Walking Type:	Wheeled \| Tracked Type
Electrical System:	Circuit Breakers, Intermediate Relays, Etc.	Minimum Height:	1700mm

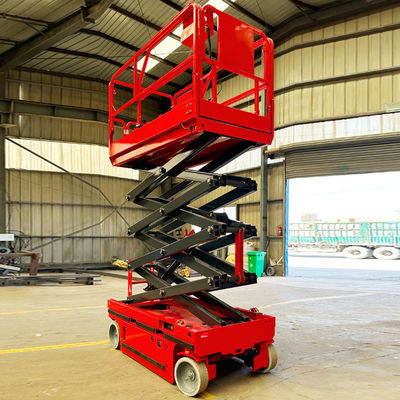

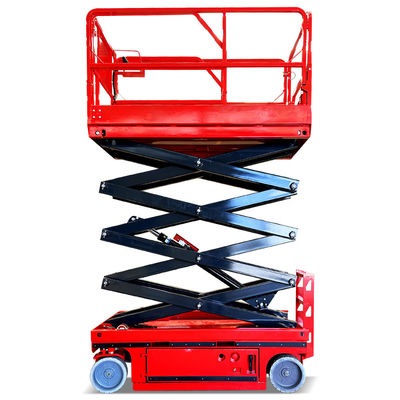

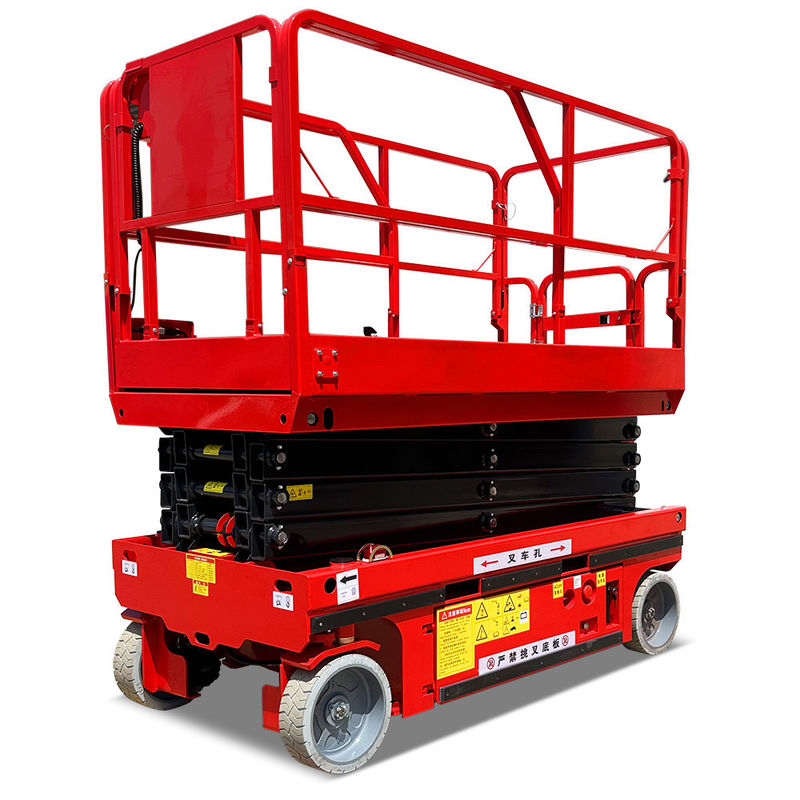

Maximum Outdoor Height Of The Rescue Equipment Project Is 4m Scissor Lift

Our 4-meter scissor lift is a high-performance lifting equipment designed to meet various job requirements. With a maximum height of 4 meters and a rated load of 320kg, it demonstrates excellent capability for elevated work. Its compact design, featuring a 24001170mm working platform and 400mm2400mm moving crawler, enables easy maneuverability in tight spaces and narrow job sites. The entire platform is constructed using Q345 steel, ensuring robustness and durability, making it well-suited for demanding work environments. The scissor lift is equipped with a 48V/4.0kw lifting oil pump motor and a fully automatic walking system, ensuring smooth and precise operations, thereby improving work efficiency and safety. Its versatility allows it to be used in various fields, including construction, equipment maintenance, and landscaping, making it a multifunctional work partner.

No.	Project Name	Technical Parameters
1	Working Platform	2400*1170mm
2	Extension Platform	900mm
2	Lowest Height	1700mm (excluding guardrail)
3	Maximum Height	4m
4	Rated Load	320kg
5	Lifting Oil Pump Motor Power	48V/4.0kw
6	Moving Crawler	400mm*2400mm
7	Platform Frame	18# channel steel
8	Electrical System	Circuit breaker, relays, charger, travel switch, etc.
9	Movement Mode	Fully automatic walking
10	Overall Dimension	Length 2700 * Width 1600 * Height 1460 (mm)
11	Equipment Weight	Approx. 2000kg
12	Battery	Maintenance-free 6V8200ah

Company Profile

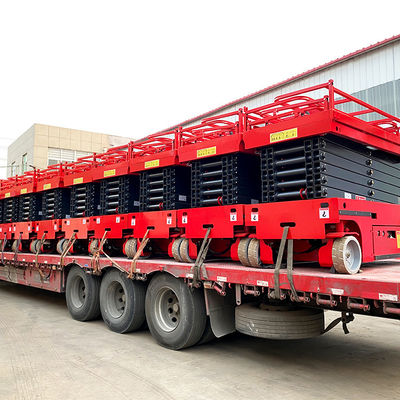

Product packaging

Certifications

FAQ

1. Are you original manufacturer? A: Yes, we are Shandong Huaqi Machinery Co.,Ltd. 2. What kind of payment terms can be accepted? A: Normally we can worked on T/T 3. Which incoterms 2010 terms can we work? A: Normally we can worked on FOB (QINGDAO), CFR, CIF 4. What about the delivery time? A: Within 10-18 days after receiving the deposit 5. What about the warranty time? A: 1 year or 2000 hours. We shoulder all costs during the warranty period, include the freight. 6. What about the Minimum Order Quantity? A: The MOQ is 1 unit.
