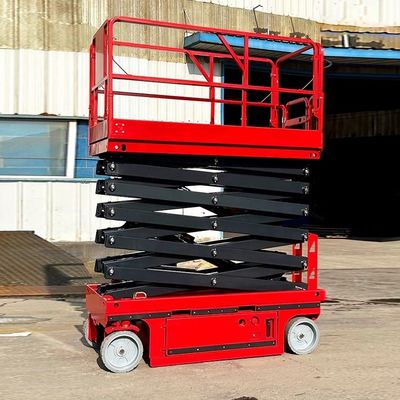

48V/4.5kw Motor Power 320kg Rated Load Hydraulic Wheel Mobile Scissor Lift Platform

Large Image : 48V/4.5kw Motor Power 320kg Rated Load Hydraulic Wheel Mobile Scissor Lift Platform

Product Details:

Place of Origin:	Shandong, China
Brand Name:	HUAQI

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$2,800.00/sets 1-9 sets

Contact Now

48V/4.5kw Motor Power 320kg Rated Load Hydraulic Wheel Mobile Scissor Lift Platform

Description

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C	Showroom Location:	Peru, Saudi Arabia, Indonesia, Russia, Spain, Thailand, South Korea, Chile, UAE
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	PLC, Bearing, Motor, Gear	Condition:	New
Rated Loading Capacity(kg):	320kg	Hoisting Speed:	Rated
Max Lifting Height:	6m	Dimension(LWH):	Length 2700 * Width 1700 * Height 2050 (mm)
Loder Weight:	Approx. 3000kg	Warranty:	1 Year
UNIQUE SELLING POINT:	High Operating Efficiency	Weight (KG):	320 Kg
Working Platform:	2400*1170mm	Lowest Height:	2050mm (excluding Guardrail)
Maximum Working Height:	12m	Rated Load:	320kg
Lifting Oil Pump Motor Power:	48V/4.5kw	Platform Frame:	18# Channel Steel
Movement Mode:	Fully Automatic Walking	Product Name:	Lift Platform
Keyword:	Lift Platform	Drive:	Hydraulic

Product Description

CE High Quality Self-Propelled Scissor Lift 12m 320kg Construction Aerial Work Platform Factory Price

Product Advantages: Extended Working Range: With a maximum working height of 12m, this scissor lift provides an extended reach for versatile tasks at elevated levels. Enhanced Safety Features: The scissor lift offers a minimum height of 2050mm (excluding guardrail) and a rated load of 320kg, ensuring safe and stable operations for workers and materials. Versatile Applications: Suitable for a wide range of tasks, including construction, maintenance, installation, and repair work, making it a versatile solution for various industries.

Specification

No.	Project Name	Technical Parameters
1	Working Platform	2400*1170mm
2	Lowest Height	2050mm (excluding guardrail)
3	Maximum Working Height	12m
4	Rated Load	320kg
5	Lifting Oil Pump Motor Power	48V/4.5kw
6	Moving Tracks	350mm*2480mm
7	Platform Frame	18# channel steel
8	Electrical System	Circuit breaker, relays, charger, travel switch, etc.
9	Movement Mode	Fully automatic walking
10	Overall Dimension	Length 2700 * Width 1700 * Height 2050 (mm)
11	Equipment Weight	Approx. 3000kg
12	Battery	8 pieces of maintenance-free 6V 200AH batteries

Company Profile

Product packaging

Certifications

FAQ

1.Factory We are factory Scissor Lift manufacturer. 2. Warranty Our road roller have a one year quality warranty. 3.Markets We had sold our road roller to USA, Canada, Brizal, German, Spain, France, Italy, Dubai, Malaysia, India,Australia etc.. 4. Packing Full container loading with 6 pcs Scissor Lift, for LCL shipping, we'd pack the excavator with wooden packing. 5. Lead time For stocked Scissor Lift, we could ship the road roller within 7 days after payment, for customized road roller, we need some more days to customized them and shipping within 10 days.
