CE ISO Certified 4m 6m 10m Lifting Height Hydraulic Mini Scissor Lift for Aerial Work

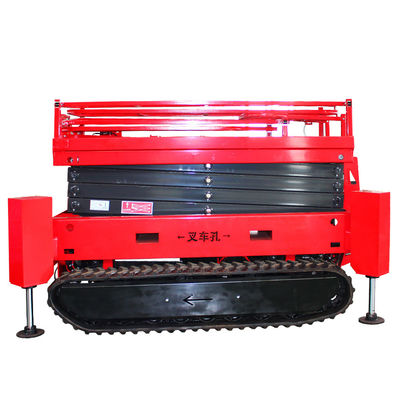

Large Image : CE ISO Certified 4m 6m 10m Lifting Height Hydraulic Mini Scissor Lift for Aerial Work

Product Details:

Place of Origin:	Shandong, China
Brand Name:	HUAQI
Model Number:	scissor lift

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$6,500.00/sets 1-9 sets

Contact Now

CE ISO Certified 4m 6m 10m Lifting Height Hydraulic Mini Scissor Lift for Aerial Work

Description

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C	Showroom Location:	Canada, Turkey, Germany, Saudi Arabia
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Engine, Pump	Condition:	New
Rated Loading Capacity(kg):	320kg	Hoisting Speed:	3-5m/min
Max Lifting Height:	4m	Dimension(LWH):	2.4751.181.88m
Loder Weight:	320kg	Warranty:	1 Year
UNIQUE SELLING POINT:	High Operating Efficiency	Weight (KG):	320 Kg
Product Name:	Lift Platform	Maximum Working Height:	11.80m
Maximum Platform Height:	9.80m	Extended Platform Safe Working Load:	113kg
Countertop Extension Size:	0.9m	Minimum Ground Clearance:	0.1/0.02m
Keyword:	Aerail Work Platform	Name:	Towble Boom Lift
Name:	Mobile Hydraulic Hoist

Discounted

Product Description

CE ISO Factory Supply 4m 6m 10m Lifting Height Hydraulic Mini Scissor Lift Self Propel For Aerial Work

Crawler scissor lift offers versatile advantages, suitable for diverse environments. Its compact design and flexible maneuverability make it ideal for confined spaces. With robust tracks, it navigates rough terrains effortlessly, ensuring stability and safety even on uneven surfaces. The lift's enhanced reach and height capabilities facilitate efficient overhead tasks in construction, maintenance, and industrial settings. Its electric or diesel-powered options provide operational flexibility while minimizing environmental impact. Versatility, durability, and safety features characterize this lift, making it indispensable for construction sites, warehouses, and facilities maintenance.

Specification

Model (self-propelled hydraulic drive)	HQ10
maximum working height	11.80m
Maximum platform height	9.80m
safe working load	320kg
Extended platform safe working load	113kg
Working platform size (length × width × height)	2.3×1.1 5 ×1.1m
Overall dimensions of the machine (length × width × height, Guardrail is not folded)	2.475×1.18×2.48m
Overall dimensions of the machine (length × width × height, guardrail folding)	2.475×1.18×1. 88 m
Countertop extension size	0.9m
minimum ground clearance	0.1/0.02m
Wheelbase	1.92m
Turning radius (inner wheel/outer wheel)	0/2.35m
Lift/drive motor	24V / 3.3kw
Lifting speed	3-5m/min
Machine traveling speed (folded state)	3.5km/h
Machine traveling speed (lifting state)	0.8km/h
battery	4×6V / 200ah
charger	24V/30A
Maximum climbing ability	25%
Maximum allowable working angle	1.5°/3°
tire	Φ38 0 ×127mm
Total Weight	2750kg
Ex-factory price does not include tax and shipping costs
