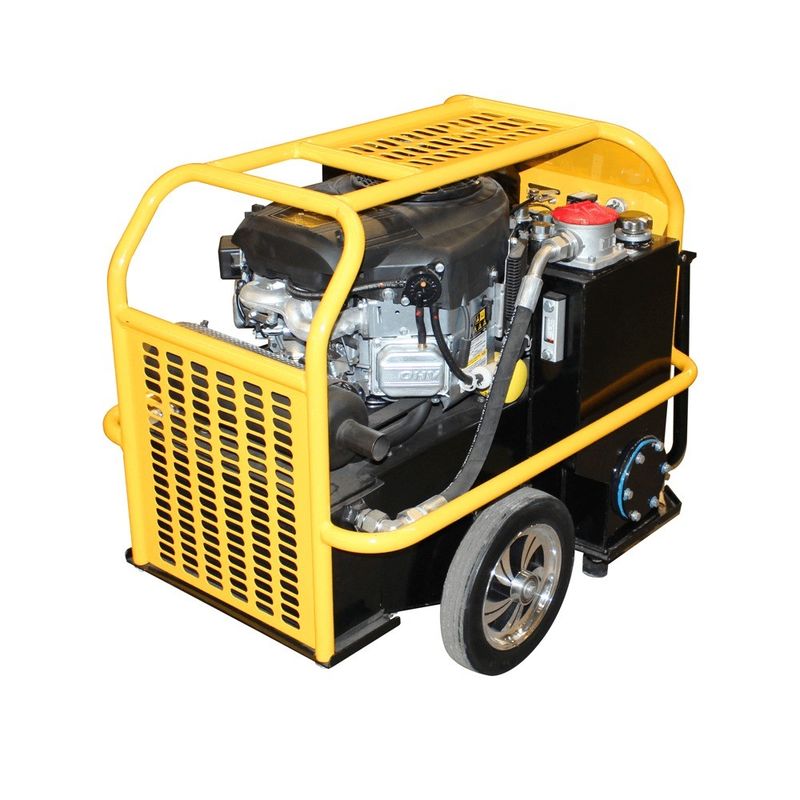

Start Mode Electric Start Optional Hydraulic Control System Hydraulic Power Unit

Large Image : Start Mode Electric Start Optional Hydraulic Control System Hydraulic Power Unit

Product Details:

Place of Origin:	Shandong, China
Brand Name:	HUAQI

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$6,845.00/sets 1-19 sets
Packaging Details:	wooden case
Supply Ability:	1000 Set/Sets per Month

Contact Now

Start Mode Electric Start Optional Hydraulic Control System Hydraulic Power Unit

Description

Warranty:	1.5 Years	Showroom Location:	Canada, Turkey, Russia
Pressure:	Standard	Structure:	Standard
Weight:	180	Power:	313
Dimension(LWH):	745mm680mm615mm	Displacement:	12cm³
Pump Type:	SCREW PUMP	Maximum Flow Rate:	30L/min
Product Name:	Hydraulic Vane Pump	Start Mode:	Manual Pull / Electric Start (Optional)
Application:	Slurry Pumps	Engine:	Bailitong
Hydraulic Pressure:	155 Bar	Fuel Tank Capacity:	26 L
Engine Fuel Consumption Per Hour:	8 L	Hydraulic Tank Capacity:	17.2 L
System Type:	Open System	Keywords:	Hydraulic Small Electric Oil Pump
Port:	Qigndao

Product Description

Click here for more discounts

Step up your hydraulic power game with our latest Hydraulic Power Station, now powered by the robust Bailitong 35HP / 26KW engine. Delivering impressive performance, this power station is ready to tackle your most demanding hydraulic tasks. Choose from three options for hydraulic flow rate - 2×30 lpm, 2×40 lpm, or 1×80 lpm (2×8 gpm, 2×10 gpm, or 1×20 gpm) - to meet your specific application requirements with ease. Operating at a hydraulic pressure of 155 bar, it delivers the force needed for efficient performance. Designed for versatility and ease of use, the machine measures 1130 mm in length, 630 mm in width, and 850 mm in height, with a manageable weight of 200 kg. This compact design ensures excellent maneuverability and transportability. The Hydraulic Power Station features a 26-liter fuel tank, offering extended operation without frequent refueling. With a fuel consumption rate of 8 liters per hour, it is both powerful and fuel-efficient.

Specification

Parameter	Value
Engine	Balitong 35HP/26KW
Hydraulic Flow Rate	2x30 lpm / 2x40 lpm / 1x80 lpm
	(2x8 gpm / 2x10 gpm / 1x20 gpm)
Hydraulic Pressure	155 bar
Length	1130 mm
Width	630 mm
Height	850 mm
Weight	200 kg
Fuel Tank Capacity	26 L
Engine Fuel Consumption (per hour)	8 L
Hydraulic Oil Tank Capacity	17.2 L

Company Profile

FAQ

1. Are you original manufacturer? A: Yes, we are Shandong Huaqi Machinery Co.,Ltd. 2. What kind of payment terms can be accepted? A: Normally we can worked on T/T 3. Which incoterms 2010 terms can we work? A: Normally we can worked on FOB (QINGDAO), CFR, CIF 4. What about the delivery time? A: Within 7-10 days after receiving the deposit 5. What about the warranty time? A: 1 year or 2000 hours. We shoulder all costs during the warranty period, include the freight. 6. What about the Minimum Order Quantity? A: The MOQ is 1 unit.
