Hydraulic Drive Double Drum Pedestrian Roller Hand/Electric Start 500kg Smooth Wheel

Certification
China Shandong Huaqi Machinery Co., Ltd. certification
China Shandong Huaqi Machinery Co., Ltd. certification
I'm Online Chat Now

Hydraulic Drive Double Drum Pedestrian Roller Hand/Electric Start 500kg Smooth Wheel

Hydraulic Drive Double Drum Pedestrian Roller Hand/Electric Start 500kg Smooth Wheel
Hydraulic Drive Double Drum Pedestrian Roller Hand/Electric Start 500kg Smooth Wheel Hydraulic Drive Double Drum Pedestrian Roller Hand/Electric Start 500kg Smooth Wheel Hydraulic Drive Double Drum Pedestrian Roller Hand/Electric Start 500kg Smooth Wheel Hydraulic Drive Double Drum Pedestrian Roller Hand/Electric Start 500kg Smooth Wheel Hydraulic Drive Double Drum Pedestrian Roller Hand/Electric Start 500kg Smooth Wheel Hydraulic Drive Double Drum Pedestrian Roller Hand/Electric Start 500kg Smooth Wheel

Large Image :  Hydraulic Drive Double Drum Pedestrian Roller Hand/Electric Start 500kg Smooth Wheel

Product Details:
Place of Origin: Shandong, China
Brand Name: HUAQI
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $1,500.00/sets 1-9 sets
Packaging Details: * Wooden box with Standard Export Packing <br>* Film plastic and wooden crate with manufacturer logo outsides. <br>* All of the productions are inspected carefully by QC before delivery.
Supply Ability: 1000 Set/Sets per Month road roller

Hydraulic Drive Double Drum Pedestrian Roller Hand/Electric Start 500kg Smooth Wheel

Description
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Restaurant, Home Use, Retail, Printing Shops, Construction Works , Energy & Mining, Advertising Company Showroom Location: Canada, Russia, UAE, Tajikistan
Condition: New Type: Vibratory Roller
Travel Speed: 0-3km/h Grade Ability: 25%
Power: 5.5 KW Dimension(L*W*H): 1400x870x1450mmm
Weight: 500kg Warranty: 1 Year
Hydraulic Pump Brand: Huade Hydraulic Valve Brand: HYDAC
Engine Brand: CHANGCHAI UNIQUE SELLING POINT: Short Turning Radius
Drum Diameter: 425mm Drum: Double Drum Roller
Exciting Force: 20KN Machinery Test Report: Provided
Video Outgoing-inspection: Provided Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year Core Components: Motor, Pump, Engine
Product Name: HQ-YLS600 Double Drum Pedestrian Roller Starting Method: Hand/Electric Start
Engine Power: 0-3km/h Drive Method: Hydraulic Drive
Excitation Frequency: 70Hz Water Tank Capacity: 17L
Steel Wheel Size: 600*425mm*2 Compaction Width: 600m
Vibration Type: Automatic Clutch Engine Model: R180
Port: Qingdao,Shanghai,Guangzhou

Discounted
Hydraulic Drive Double Drum Pedestrian Roller Hand/Electric Start 500kg Smooth Wheel 0

Double Drum Pedestrian Roller Hand Held 500kg Smooth Wheel Road Roller For Sale

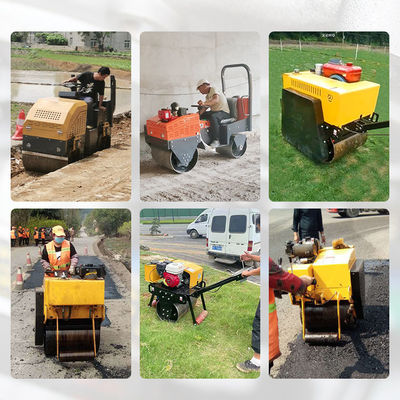

HQ-YLS600 Walking Tandem Roller is equipped with Changfa 178f air-cooled diesel engine or Changchai R180 water-cooled diesel engine and the vibration force is 2 ton.The width of both wheels is 600mm and the diameter is 420mm. The working radius is small and HQ-YLS600 is suitable for compaction operations in narrow areas where large rollers cannot enter.It is mainly used for the compaction and leveling of ditches, roads and sports grounds, and it can also be used for compacting asphalt surfaces.
Product Description

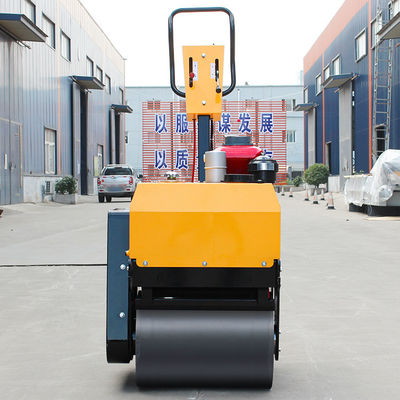

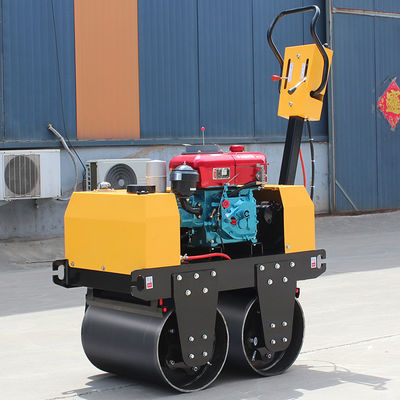

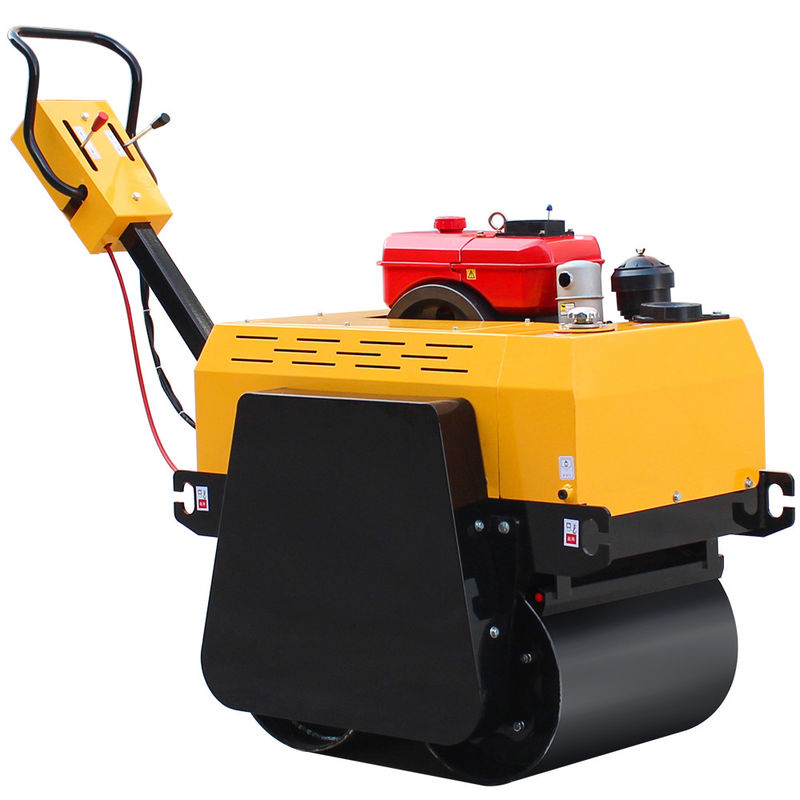

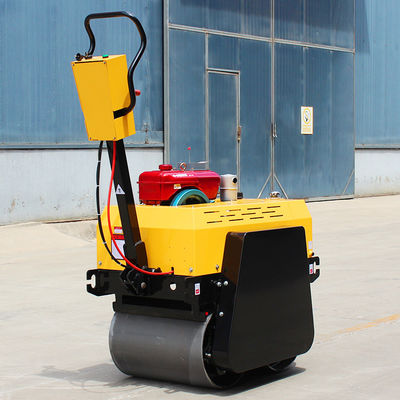

Hydraulic Drive Double Drum Pedestrian Roller Hand/Electric Start 500kg Smooth Wheel 1
Hydraulic Drive Double Drum Pedestrian Roller Hand/Electric Start 500kg Smooth Wheel 2
Hydraulic Drive Double Drum Pedestrian Roller Hand/Electric Start 500kg Smooth Wheel 3
Hydraulic Drive Double Drum Pedestrian Roller Hand/Electric Start 500kg Smooth Wheel 4
Hydraulic Drive Double Drum Pedestrian Roller Hand/Electric Start 500kg Smooth Wheel 5
Hydraulic Drive Double Drum Pedestrian Roller Hand/Electric Start 500kg Smooth Wheel 6
Hydraulic Drive Double Drum Pedestrian Roller Hand/Electric Start 500kg Smooth Wheel 7
Specification
Model
HQ-YLS600
Engine brand
Changchai
Engine model
R180
Engine power
0-3km/h
Walking speed
5.67kw
Compaction width
600m
Exciting force
20kn
Vibration frequence
70HZ
Steel wheel size
600*425mn*2
Climbing ability
25%
Net weight
500kg
Drive type
Hydraulic station
Vibration type
Automatic clutch
Starting mode
Hand/Electric
Package size(L*W*H)
1400*870*1450mn
Hydraulic Drive Double Drum Pedestrian Roller Hand/Electric Start 500kg Smooth Wheel 8
Company Profile
Hydraulic Drive Double Drum Pedestrian Roller Hand/Electric Start 500kg Smooth Wheel 9
Hydraulic Drive Double Drum Pedestrian Roller Hand/Electric Start 500kg Smooth Wheel 10
Certifications
Hydraulic Drive Double Drum Pedestrian Roller Hand/Electric Start 500kg Smooth Wheel 11

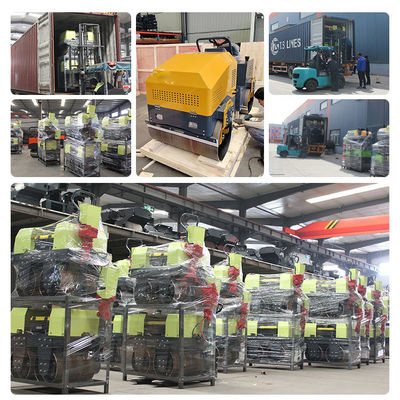

Product packaging
