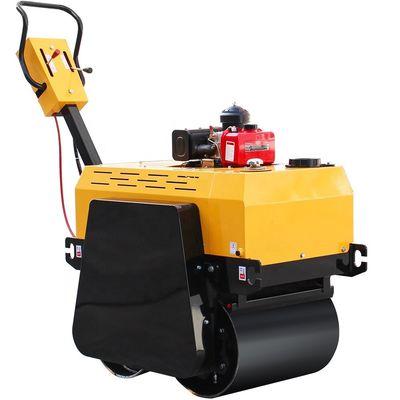

HONDA Powered 20KN Walk Behind Vibratory Mini Road Roller for Asphalt and Soil Pavement

HONDA Powered 20KN Walk Behind Vibratory Mini Road Roller for Asphalt and Soil Pavement
HONDA Powered 20KN Walk Behind Vibratory Mini Road Roller for Asphalt and Soil Pavement HONDA Powered 20KN Walk Behind Vibratory Mini Road Roller for Asphalt and Soil Pavement HONDA Powered 20KN Walk Behind Vibratory Mini Road Roller for Asphalt and Soil Pavement HONDA Powered 20KN Walk Behind Vibratory Mini Road Roller for Asphalt and Soil Pavement HONDA Powered 20KN Walk Behind Vibratory Mini Road Roller for Asphalt and Soil Pavement HONDA Powered 20KN Walk Behind Vibratory Mini Road Roller for Asphalt and Soil Pavement

Large Image :  HONDA Powered 20KN Walk Behind Vibratory Mini Road Roller for Asphalt and Soil Pavement

Product Details:
Place of Origin: Shandong, China
Brand Name: HUAQI
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $1,480.00/sets 1-9 sets
Contact Now

HONDA Powered 20KN Walk Behind Vibratory Mini Road Roller for Asphalt and Soil Pavement

Description
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction Works  Showroom Location: Canada, Germany, Brazil, India, Russia, Thailand, Kenya, Argentina, Colombia, Romania, South Africa, Malaysia
Condition: New Type: Vibratory Roller
Travel Speed: 0~4km/h Grade Ability: 30%
Power: 4.5KW Dimension(L*W*H): 2480*770*1170MM
Weight: 550KG Warranty: 1 Year
Hydraulic Pump Brand: VolksWagen Engine Brand: CHANGCHAI/CHANGFA/HONDA
UNIQUE SELLING POINT: High Operating Efficiency Drum Diameter: 425MM
Drum: Double Drum Roller Exciting Force: 20KN
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Marketing Type: Ordinary Product Warranty Of Core Components: 1 Year
Core Components: Motor, Pump, Engine Diesel Changfa Engine: 4.5KW
Gasoline Honda Engine: 6.7KW Diesel Changchai Engine: 4.5KW

550 kg walk behind vibratory mini road roller double drum road roller for asphalt and soil pavement

Product Description



HONDA Powered 20KN Walk Behind Vibratory Mini Road Roller for Asphalt and Soil Pavement 0



SPECIFICATION SHEET



ITEM NO/DETAILS HQ550
ENGINE
Engine CHANGCHAI 178 HONDA GX270
Engine type One cylinde, air-cooled, four-stroke, diesel One cylinde, air-cooled, four-stroke, gasoline
Number of cylinders 1
Output power (HP) 6 9
Rating speed(RPM) 3600 3600
Fuel consupmtion(G/KWH) ≤280
Lubricating oil volume(L) 1.1 2
Start up Hand recoild/Electric start
DRIVING
Electrical equipment(V) 12
Drive mode Two-way hydraulic, chain drive
Walking speed (KM/H) 0--4
Theoretical climbing ability(%) 30
EXCITING SYSTEM
Vibration wheel Front+rear
Drive form Mechanical type
Vibration frequency (HZ) 70
Vibration amplitude (MM) 0.5
Exciting force(KN) 20
SPRINGKLING SYSTEM
Water spray form Gravity-type water spray
CAPACITY
Fuel capacity(L) 3.5 5.9
Hydraulic oil capacity(L) 17
Water tank capacity (L) 13
SIZE
Working width(MM) 770
Overall length(MM) 2480
Machine height(MM) 1170
Drum size 425*600mm*2
Drum thickness(MM) 12
Ground clearance(MM) 170
WEIGHT
Working weight(KG) 550
Static load(N/CM) 45/50

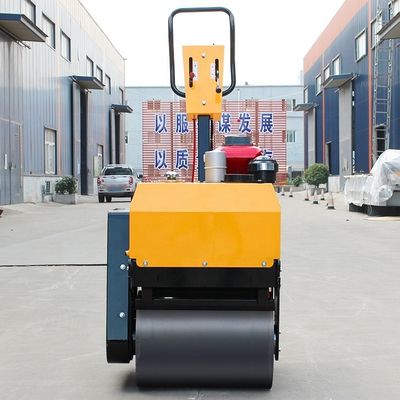

HONDA Powered 20KN Walk Behind Vibratory Mini Road Roller for Asphalt and Soil Pavement 1

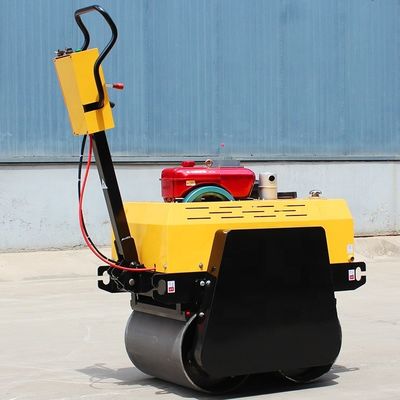

    HONDA Powered 20KN Walk Behind Vibratory Mini Road Roller for Asphalt and Soil Pavement 2



   Advices on Choosing A Vibratory Road Roller:

   1. If the labor costs is high in your country, please kindly choose the ride on type road roller, more comfortable for     workers.



   2. If the degree of mechanization is not very high in your country, please kindly choose the walk behind type small     compacting roller.



   3. If you compact the wide road(like soil, asphalt, sand, concrete and lawn), please consider the compaction             effect you want to get, then choose a compactor roller of corresponding weight. We have 330kg, 550kg, 800kg,       1000kg, 1200kg, 1500kg, 2000kg, 2500kg and 3000kg weight of road roller. The heavier the road roller is, the            bigger the exciting force can be.



   4. If you compact the narrow road(trench), please conside the width of the road(trench), the width of the road            roller drum must smaller than the width of the road(trench). We have 600mm, 635mm, 700mm, 800mm, 900mm,     1000mm, 1100mm and 1200mm drum width of road roller.



   For Further Detailed Professional Advice, pls contact us as below:



                                               We provide 24/7 service

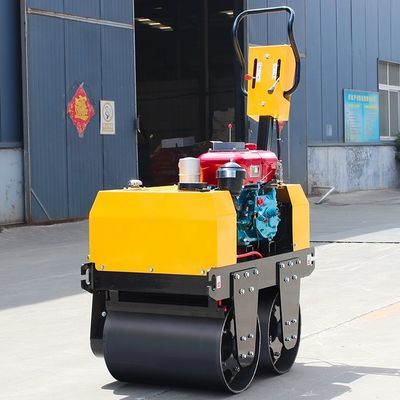

                                HONDA Powered 20KN Walk Behind Vibratory Mini Road Roller for Asphalt and Soil Pavement 3
