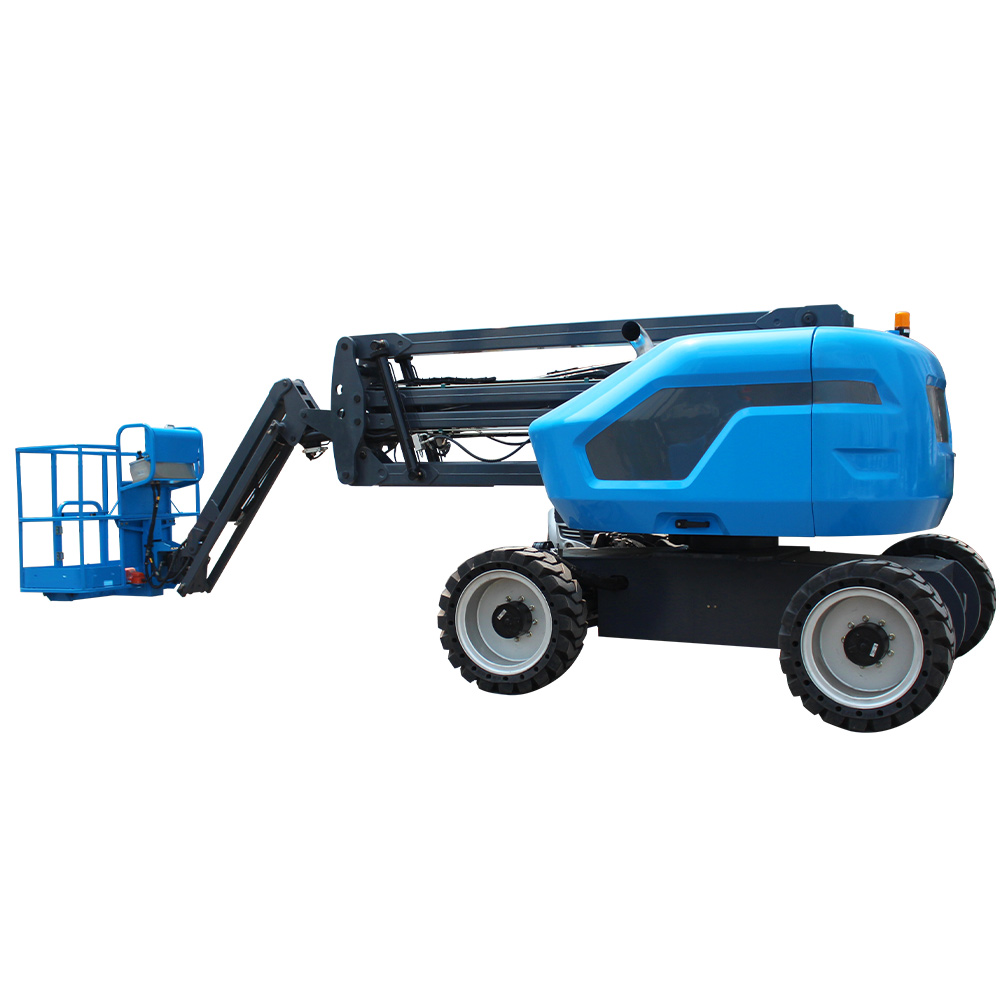

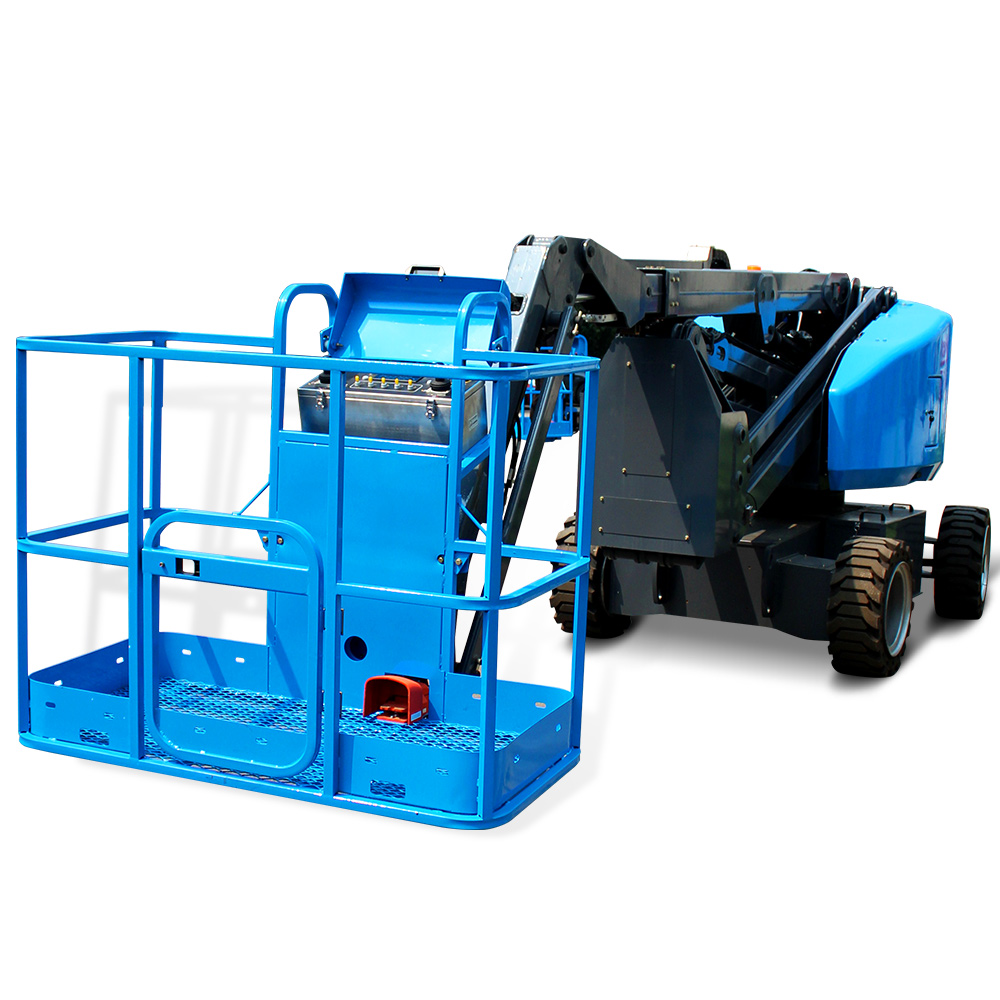

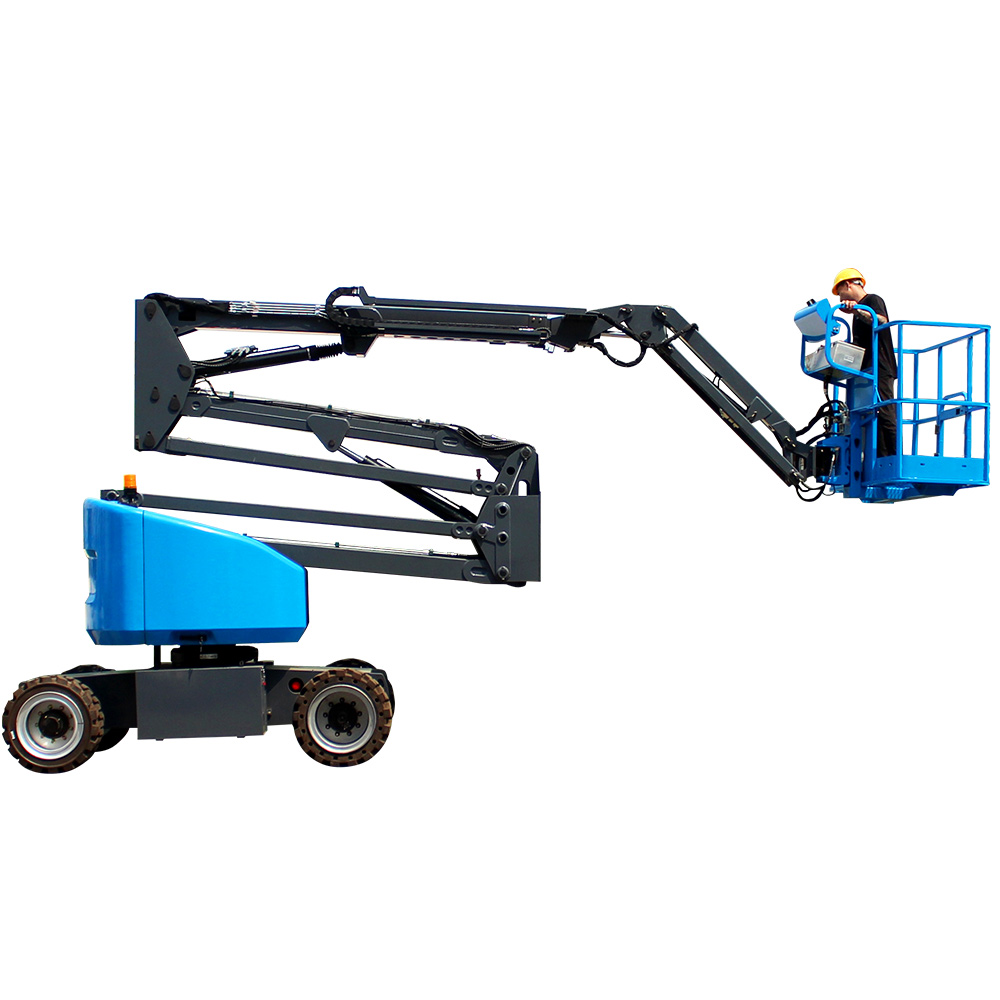

Where traditional lifts reach their limits, the self-propelled diesel articulating boom lift redefines the possible. This machine isn't just about achieving height—it's about conquering complex paths. Its intelligent articulating arm reaches over, under, and around obstacles—from machinery and structural beams to landscape features—delivering workers and tools directly to the work point with pinpoint accuracy. It turns complicated, multi-stage access tasks into a single, efficient operation.
Powered by robust diesel engines, this platform delivers the endurance and torque for demanding, all-day outdoor work on unimproved terrain. Its self-propelled capability means rapid repositioning by a single operator from within the platform, maximizing productive work time and eliminating the downtime of manual moving or secondary towing equipment. This combination of extreme reach, obstacle-overcoming agility, and independent power makes it indispensable for the most challenging sites.
From industrial plant maintenance and steel erection to complex construction facades and sign installation, this lift directly tackles the projects that stall productivity. It reduces or eliminates the need for scaffolding, minimizes costly site preparation, and enhances crew safety by providing a stable, direct path to overhead work. For fleet owners, it represents the ultimate tool for expanding service capabilities, winning specialized bids, and completing high-value tasks with unmatched speed and confidence.
| Parameter | 10 M Model | 12 M Model | 14 M Model | 15 M Model |
|---|---|---|---|---|
| Model | 10 M | 12 M | 14 M | 15 M |
| Max Working Height | 12 M | 13.72 M | 15.6 M | 16.6 M |
| Max Horizontal Extension | 5.8 M | 6.45 M | 7.49 M | 8.52 M |
| Max Carrying Capacity | 200 KG | 250 KG | 230 KG | 230 KG |
| Min Turning Radius | 2.16 M | 3.5 M | 3.5 M | 4.8 M |
| Gradeability | 25 % | 30 % | 30 % | 45 % |
| Closed Vehicle Size | 4350*1500*1800 MM | 5780*1750*2000 MM | 8730*1760*2130 MM | 7700*2280*2180 MM |
| Ground Clearance | 0.15 M | 0.2 M | 0.23 M | 0.3 M |
| Turntable Rotation | 355° | 355° | 360° | 360° |
| Platform Rotation | 120° | 160° | ±80° | ±80° |
| Gross Weight | 4700 KG | 6300 KG | 7000 KG | 7800 KG |
