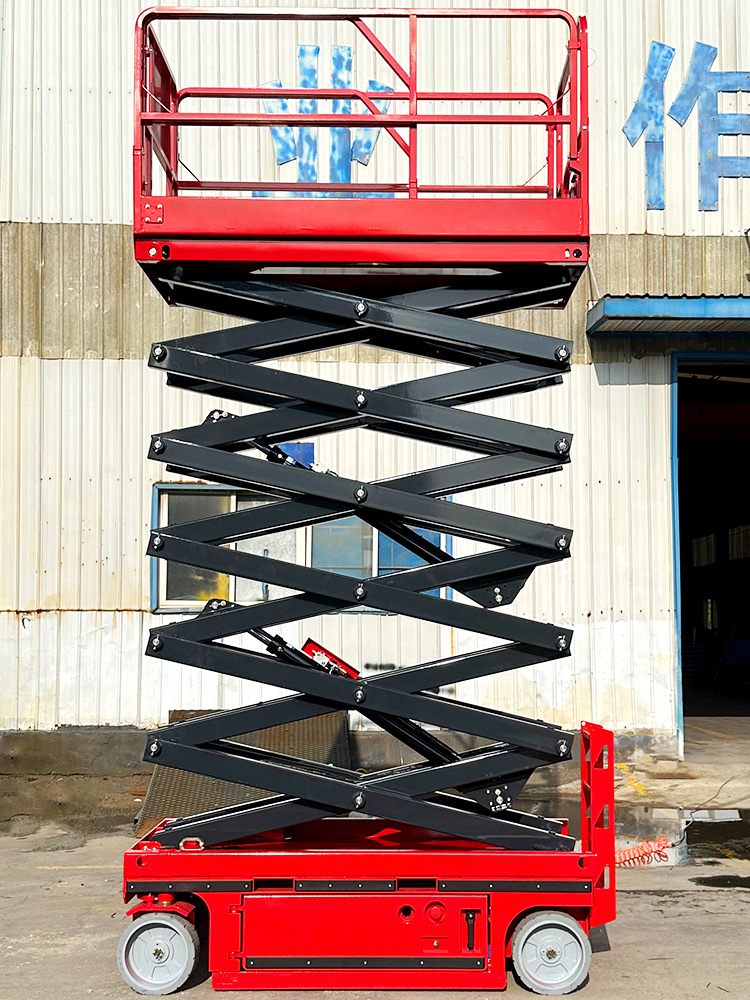

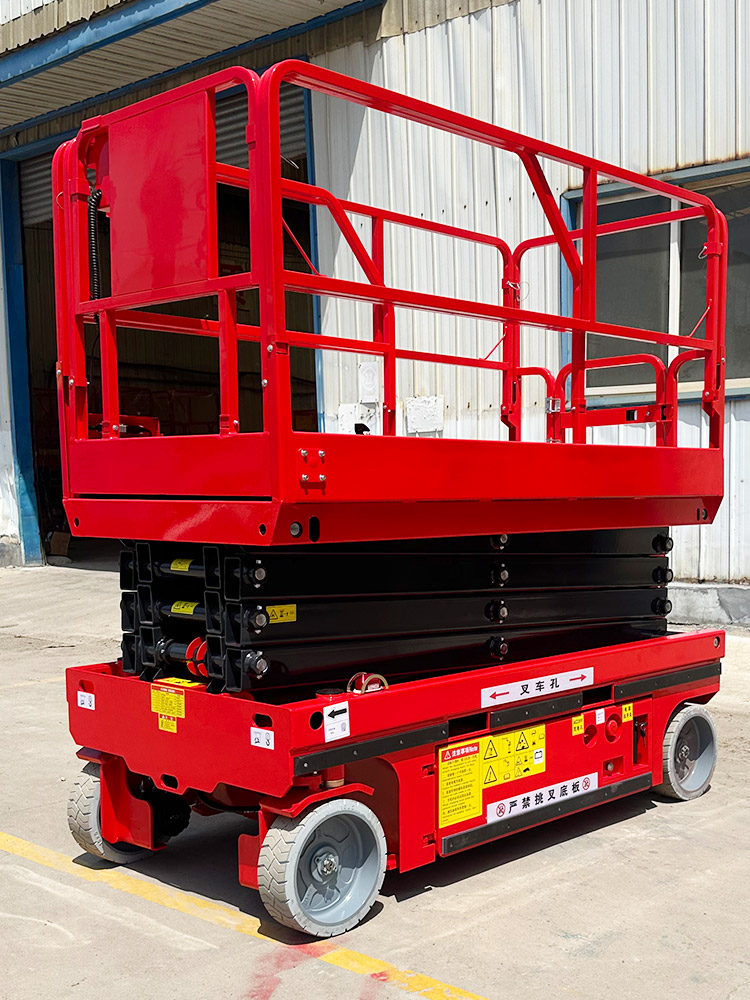

Hydraulic Aerial Lifting Platform Scissor Lift

High Stability: With its scissor-type structure, it provides excellent stability and load-bearing capacity, suitable for lifting goods to various heights.

Model:
HQ-4m Scissor Lift
Brand:
HUAQI

Availability:

Quantity:



Inquire Add to Basket

Scissor Lift Hydraulic Aerial Lifting Platform Portable Scissor Lift

Product Description

微信图片_20251208171146_236_21

Factory Price 6-16m Self Propelled Electric Mobile Scissor Lift Hydraulic Lifting Scaffold Platform

High Stability: With its scissor-type structure, it provides excellent stability and load-bearing capacity, suitable for lifting goods to various heights.

Strong Safety: Equipped with multiple safety features such as anti-fall safety devices, limit switches, and emergency stop buttons to ensure safe operation.

Wide Applicability: Ideal for warehouses, factories, docks, and logistics centers, meeting a wide range of material handling needs.

Easy Installation and Maintenance: Simple structure, easy to install, and low maintenance costs, usually requiring only regular inspection and maintenance.

No.	Project Name	Technical Parameters
1	Working Platform	2400*1170mm
2	Extension Platform	900mm
2	Lowest Height	1700mm (excluding guardrail)
3	Maximum Height	4m
4	Rated Load	320kg
5	Lifting Oil Pump Motor Power	48V/4.0kw
6	Moving Crawler	400mm*2400mm
7	Platform Frame	18# channel steel
8	Electrical System	Circuit breaker, relays, charger, travel switch, etc.
9	Movement Mode	Fully automatic walking
10	Overall Dimension	Length 2700 * Width 1600 * Height 1460 (mm)
11	Equipment Weight	Approx. 2000kg
12	Battery	Maintenance-free 6V8200ah
