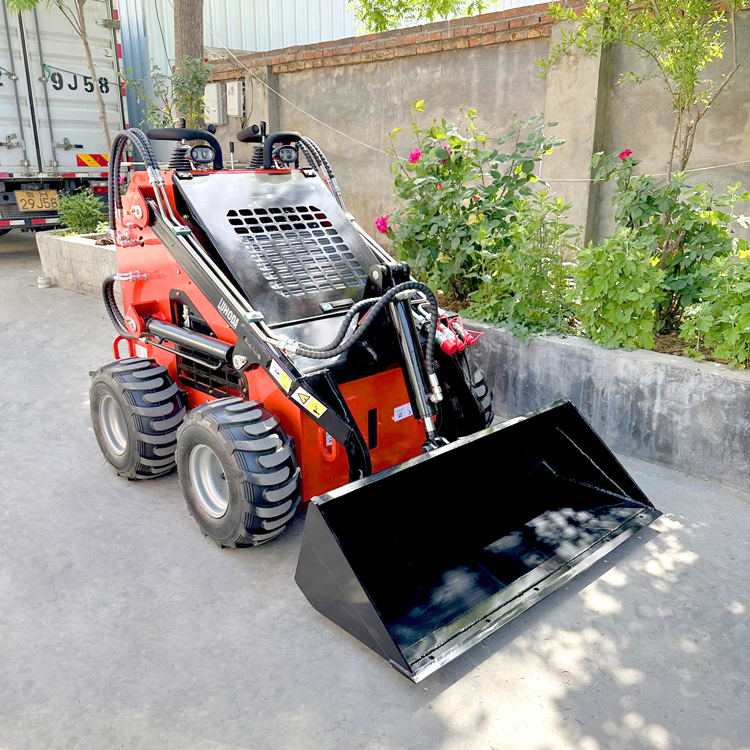

HQ-MH390 Skid Steer Loader
HUAQI
| Availability: | |
|---|---|
| Quantity: | |

In the modern landscape of complex project demands, the value of a machine is no longer defined by a single task. The skid steer loader, with its unique design philosophy, merges exceptional maneuverability with limitless versatility to become the ultimate solution for conquering space constraints and unpredictable job requirements.

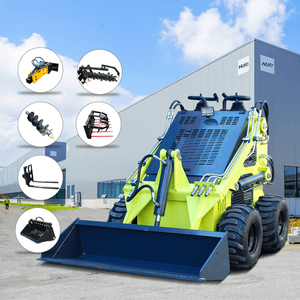

Its core advantage lies in its zero-turn agility and compact footprint, allowing it to operate with precision in warehouses, backyards, indoor sites, and other spaces where traditional equipment is rendered useless. The true transformation, however, begins with its quick-attach system—like equipping the machine with different skill sets. Within minutes, it can evolve from a powerful loader into a precise auger, an efficient snow blower, or a nimble material handler. This means you can replace the cost and complexity of maintaining multiple specialized machines with a single, mobile multi-tool workstation. This dramatically reduces total cost of ownership while significantly increasing asset utilization and your ability to tackle diverse jobs.
From construction and agriculture to landscaping and municipal maintenance, its robust performance and intuitive operation make it a critical partner for boosting productivity and ensuring project timelines. Choosing a skid steer loader is not merely an equipment purchase; it is an investment in extreme adaptability and growth potential, transforming your capital into a visible competitive advantage and a strong return on investment.
| PARAMETER | SPECIFICATION | PARAMETER | SPECIFICATION |
|---|---|---|---|
| Model | HQ-MH390 | Max Operating Height | 2470 MM |
| Starting Method | ELECTRIC | Unloading Height | 1500 MM |
| Bucket Width | 970 MM | Ground Clearance | 210 MM |
| Bucket Capacity | 0.15 M³ | Wheelbase | 800 MM |
| Walking Speed | 0-6 KM/H | Total Length Without Bucket | 1950 MM |
| Vehicle Height | 1900 MM | Total Length With Standard Bucket | 2450 MM |
| Preset Pressure | 17 MPa | Operating Weight | 1000 KG |
ENGINE SPECIFICATIONS
| PARAMETER | SPECIFICATION |
|---|---|
| Engine Model | B&S / Rato / KOOP |
| Engine Power | 10KW / 11KW / 7.6KW |
| Fuel Tank | 5 L |
| Working System Pressure | 17 Bar |
