Some machines are built for a single purpose. The skid steer loader was engineered for every purpose. In an era where efficiency is currency, this compact powerhouse emerges as the ultimate solution for operations that demand maximum versatility from minimal space.

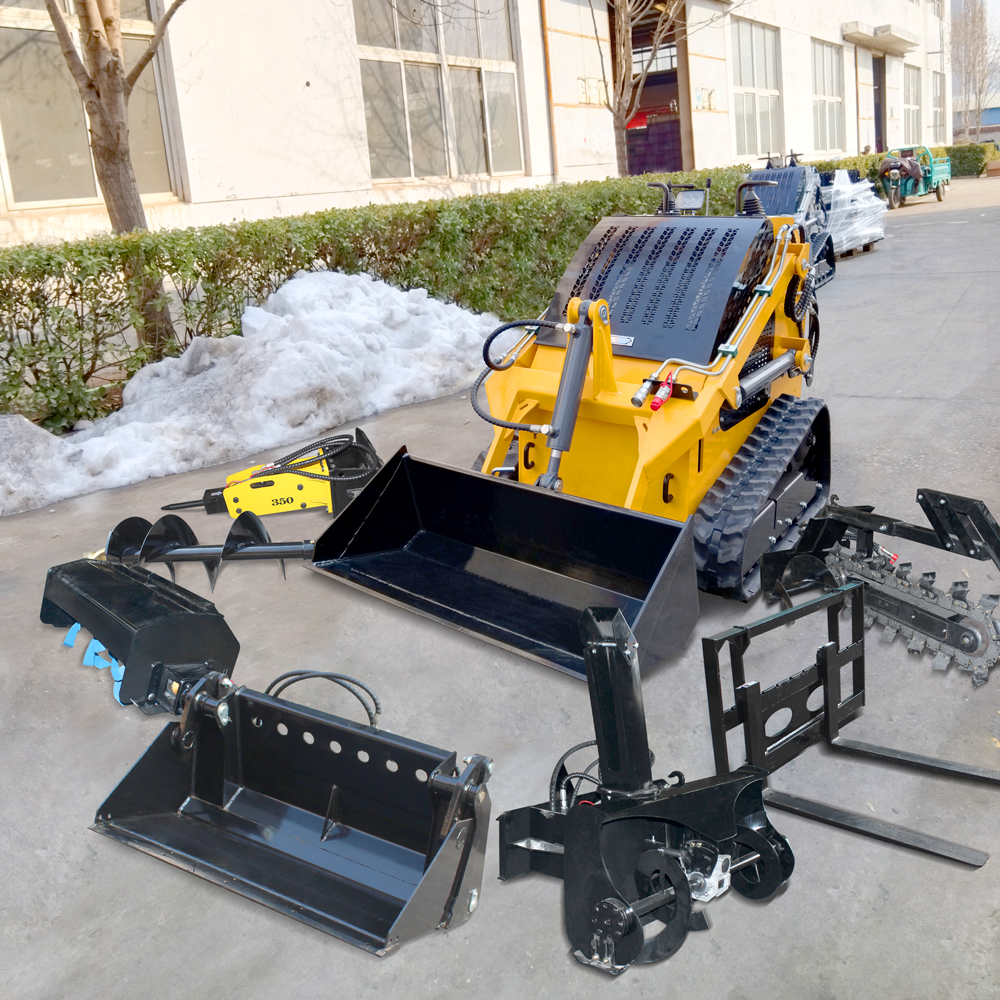

What makes the skid steer extraordinary isn't just what it is, but what it becomes. With intuitive attachment systems, this single unit transforms seamlessly between dozens of specialized tools—a loader at dawn, a trencher by midday, a snow remover by dusk. This capability eliminates equipment redundancy while dramatically expanding your service offerings and revenue potential.
The skid steer's compact dimensions conceal remarkable engineering. Its zero-radius turning capability provides surgical precision in confined spaces, while its robust construction delivers performance rivaling larger equipment. This creates a unique advantage: the ability to operate effectively where traditional machinery simply cannot access, opening new markets and opportunities.
For businesses facing diverse operational challenges, the skid steer represents the convergence of practicality and innovation. It's not merely another piece of equipment; it's a strategic asset that adapts to your evolving needs, maximizes return on investment, and positions your operations at the forefront of modern efficiency.
| PARAMETER | SPECIFICATION | PARAMETER | SPECIFICATION |
|---|---|---|---|
| Model | HQ-MH430 | Unloading Height | 1404 MM |
| Standard Lifting | 375 KG | Unloading Distance | 436 MM |
| Max Lifting | 430 KG | Dumping Angle | 30° |
| Bucket Capacity | 0.15 M³ | Hydraulic Oil Tank | 50 L |
| Walking Speed | 6 KM/H | Ground Clearance | 125 MM |
| Vehicle Weight | 810 KG | Wheelbase | 810 MM |
| Vehicle Size | 2287*1157*1280 MM | Lift/Lower Time | 4.3S / 3.3S |
ENGINE SPECIFICATIONS
| PARAMETER | Engine Option 1 (RATO) | Engine Option 2 (B&S) | Engine Option 3 (KOOP) |
|---|---|---|---|
| Engine Model | RATO | B&S | KOOP |
| Engine Power | 23 HP | 23 HP | 15 KW |
| Fuel Tank Capacity | 25 L | 25 L | 7 L (KOOP 292) |
| Fuel Consumption | ≤6.7 L/h | ≤6.7 L/h | ≤6.7 L/h |
