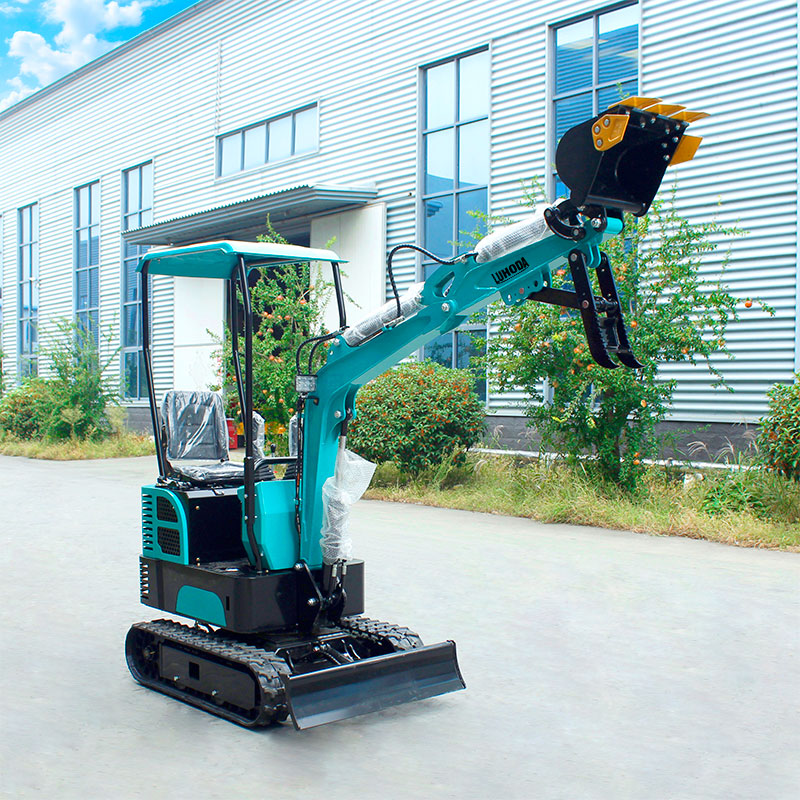

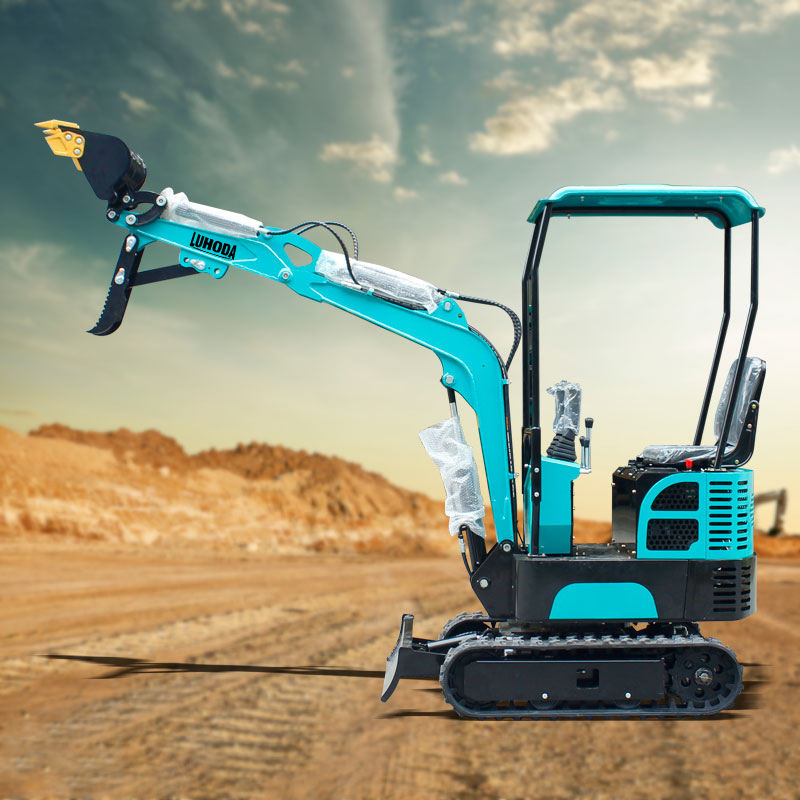

This model delivers exceptional versatility in confined spaces—ideal for urban landscaping, utility work, backyard renovations, and light interior demolition. Its size allows easy transport on a standard trailer, drastically reducing logistics costs and setup time for end-users.
Key Profit-Driving Advantages:
Unmatched Job-Site Access: Navigates narrow gates, fences, and indoor spaces, capturing contracts others must decline.
Optimal Power-to-Size Ratio: Provides sufficient digging force and stability for common tasks without the complexity or cost of larger machines.
Low Operational Overhead: Excellent fuel efficiency and minimal maintenance requirements translate to higher uptime and customer satisfaction.
Strong Rental Fleet Appeal: A highly sought-after size for rental yards, ensuring fast turnover and consistent revenue streams.

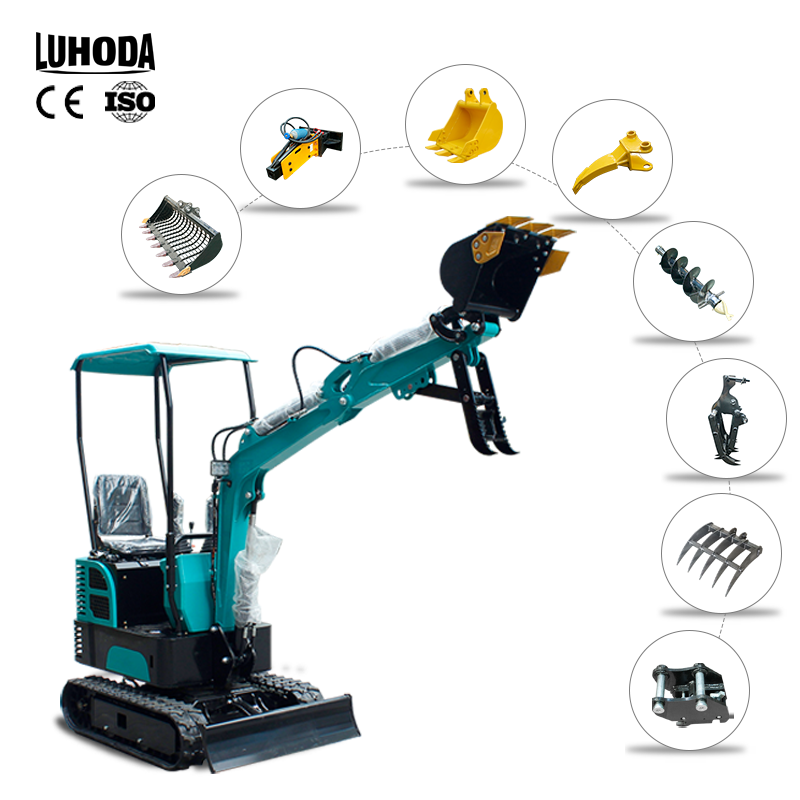

Attachment-Ready Design: Compatible with various buckets, augers, and breakers, making it a single, multi-functional investment for contractors.
Investing in the 1.2-ton category means offering a solution that maximizes your clients' profitability on everyday jobs, building loyalty and driving repeat business.
| Name | Crawler excavator |
| Model | HQ-12 |
| Operation weight | 1200KG |
| Engine（customized） | KOOP192FC EURO-5 |
| Power | 7.6KW |
| Hydraulic cylinder,pump,valve(customized) | Warranty 1 years |
| Bucket capacity | 0.03CBM |
| Rotation speed | 11r/min |
| Overall dimension(L*W*H) | 2870mm*1000mm*2030mm/2285mm(With shed) |
| Crawler grounding length | 1200mm |
| Crawler width | 180mm |
| Max digging height | 2580mm |
| Max discharge height | 1745mm |
| Max digging depth | 1700mm |
| Max digging radius | 3030mm |
| Mini turning radius | 1290mm |
| Platform clearance to ground | 380mm |
| Swing angle | 360° |
| Climbing gradient | 30° |
| Bulldozer Max depth | 170mm |
| Bulldozer Max raising height | 240mm |
| Walking speed | 2.5km/h |
| Bucket digging force | 10.5KN |
| Hydraulic system press | 16MPa |
