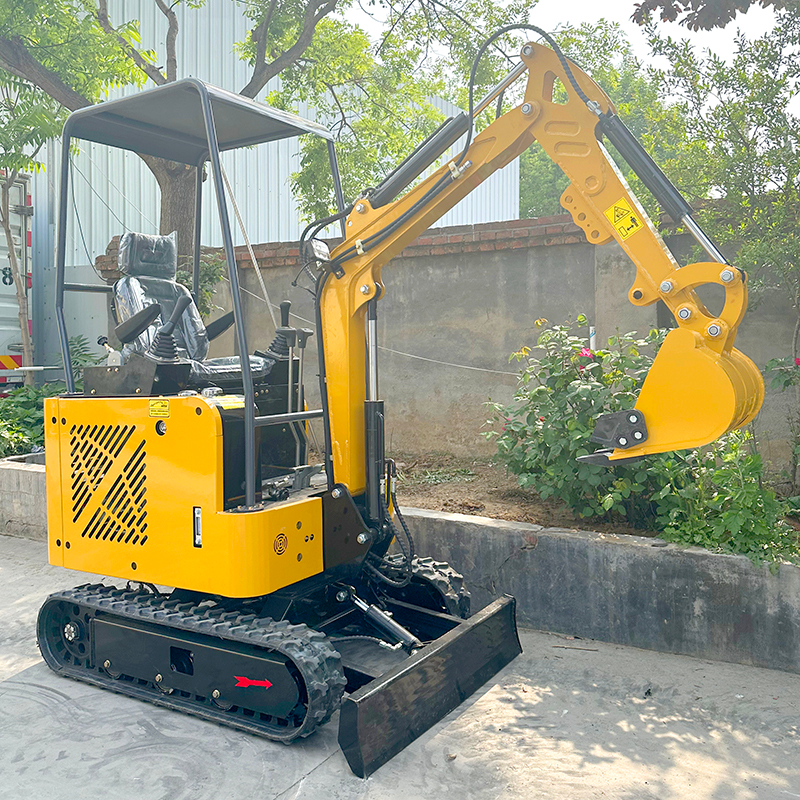

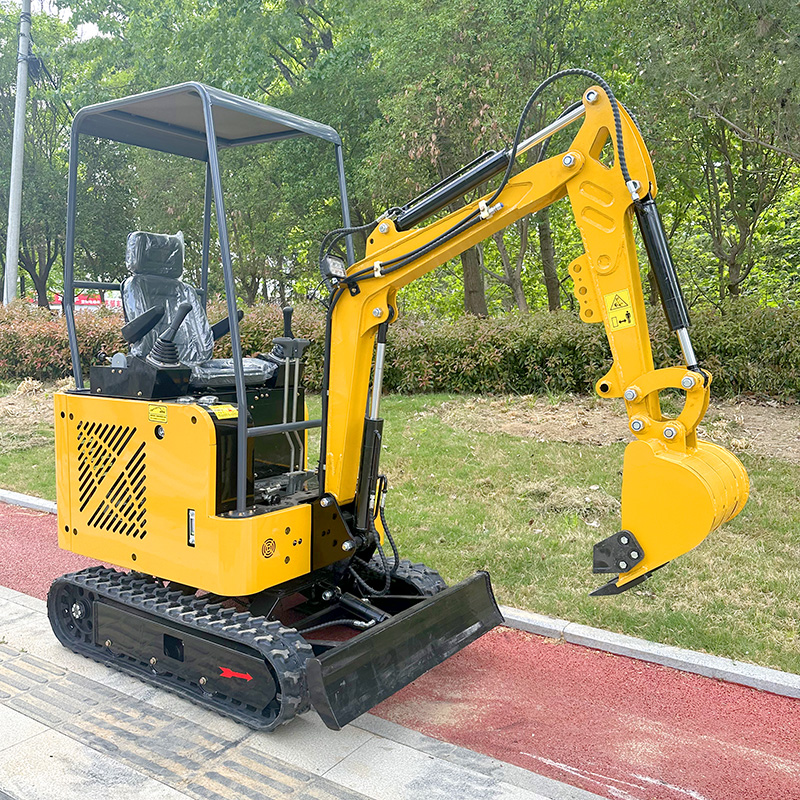

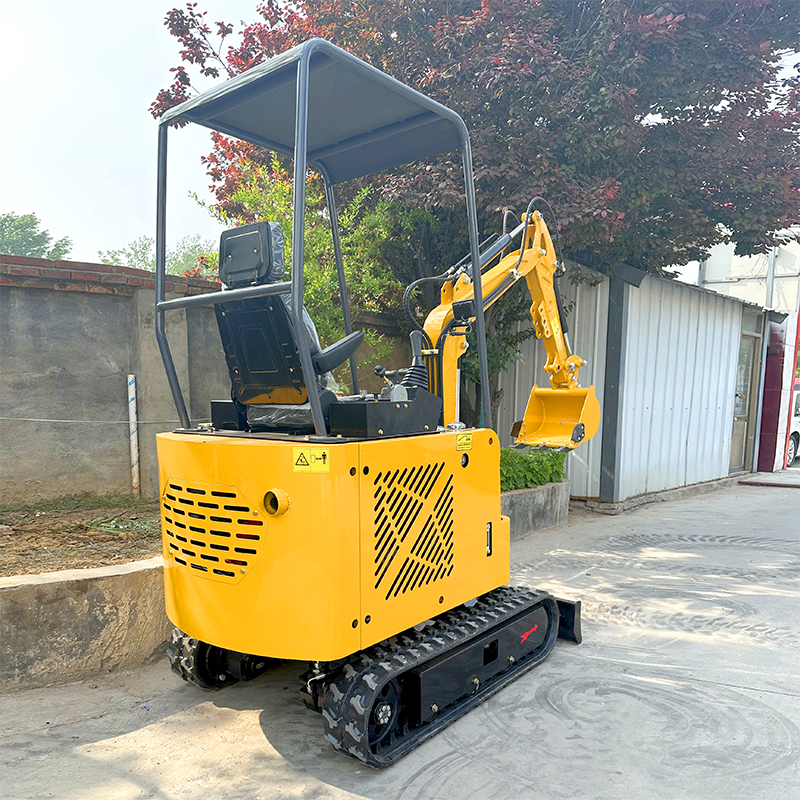

The 1.7-ton mini excavator decisively bridges the gap between accessibility and uncompromised performance. It delivers the critical mass of power and stability needed for serious groundwork, all while preserving the zero-tail-swing agility that conquers backyards, urban alleys, and indoor spaces. This is not merely a larger compact machine; it is the definitive tool for professionals who require full-scale capability within a supremely transportable footprint.
This model directly addresses the limitations of underpowered equipment. It confidently handles deeper excavations, tougher materials, and precise lifting tasks that stall smaller units, effectively eliminating the productivity gap and project delays. By consolidating power and precision into one agile platform, it reduces reliance on multiple machines and minimizes costly on-site inefficiencies.
Versatility is maximized through a comprehensive quick-attach system, enabling instant transformation from an excavator to a breaker, auger, or grapple. This operational flexibility turns a single investment into a multi-purpose asset, driving higher utilization and faster project completion across landscaping, utility, and construction sectors.
| PARAMETER | SPECIFICATION |
|---|---|
| Model | HQ-17J |
| Bucket Volume | 0.03 m³ |
| Machine Weight | 1700 KG |
| Minimum Turning Radius | 1290 MM |
| Walking Speed | 3 KM/H |
| Swing Angle | 360° |
| Climbing Gradient | 30° |
| Product Size (LxWxH) | 2950*1100*2200 MM |
| Track Width | 180 MM |
| Ground Clearance | 370 MM |
| Max Digging Height | 2750 MM |
| Max Discharge Height | 1800 MM |
| Max Digging Depth | 1900 MM |
| Max Digging Radius | 2450 MM |
| Bulldozer Max Depth | 190 MM |
| Bulldozer Raising Height | 260 MM |
ENGINE SPECIFICATIONS
| PARAMETER | SPECIFICATION |
|---|---|
| Engine Model | Lai Dong 380 |
| Rated Power | 19 KW |
