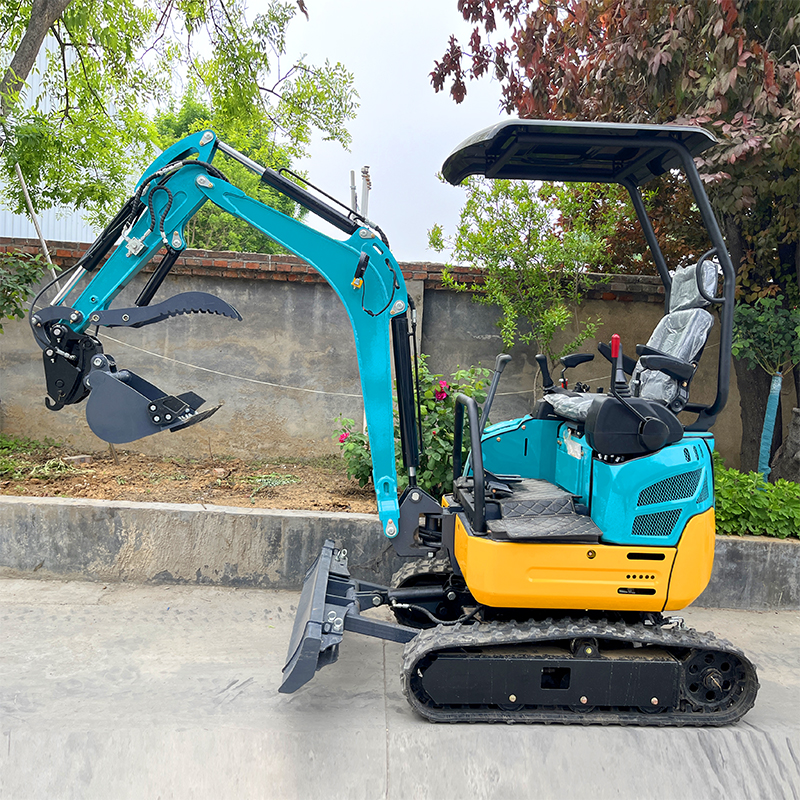

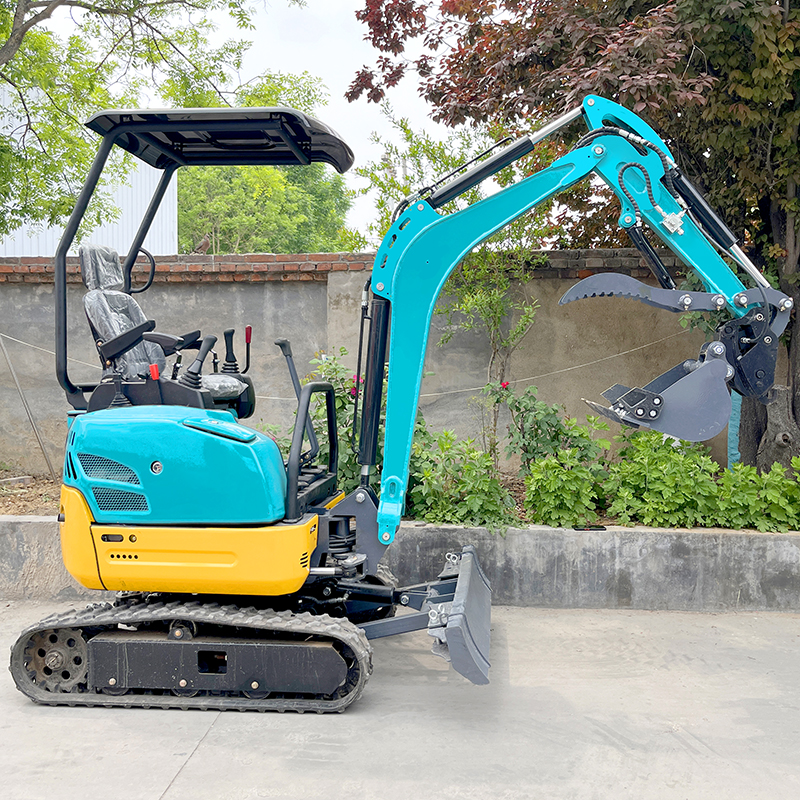

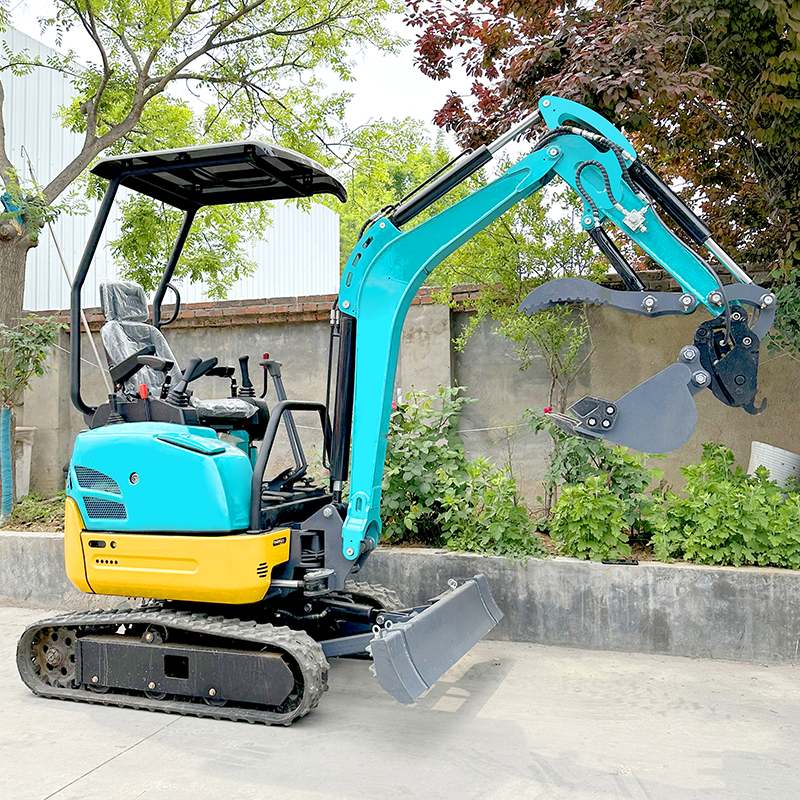

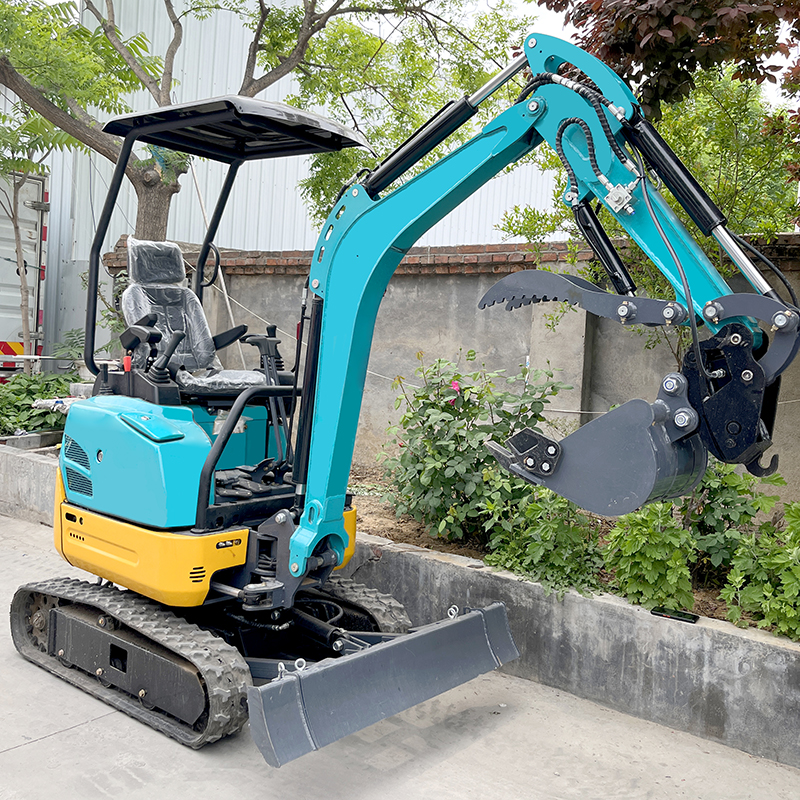

HQ-20J Mini Excavator
HUAQI
| Availability: | |
|---|---|
| Quantity: | |

Entering the 2-ton class is where compact machinery truly sheds its limitations. This model delivers a definitive breakthrough in power, offering digging force and lifting capacity that firmly belongs to a larger category of work, all while its zero-tail-swing agility and easy transport preserve the essential advantage of unparalleled site access. It is the ultimate answer for projects that demand serious earthmoving power within spaces that deny entry to traditional equipment.
This capability directly solves the critical pain point of project scalability. It empowers contractors to efficiently tackle deeper foundations, heavier pipe installations, and more complex site development tasks that were previously outsourced or required cumbersome equipment swaps. By consolidating mid-scale power into a compact platform, it eliminates project bottlenecks, expands service offerings into higher-value contracts, and dramatically improves return on assets through superior utilization and faster cycle times.
Engineered as a true multi-tool, its advanced hydraulic system and universal quick coupler unlock the full spectrum of attachments—from powerful breakers and large augers to precision grapples. For the strategic partner, the 2-ton mini excavator represents the optimal centerpiece of a modern, efficient fleet. It is not just a purchase; it is a direct investment in expanded market reach, operational agility, and commanding profitability in the competitive arenas of construction, utility, and premium landscaping.
| PARAMETER | SPECIFICATION |
|---|---|
| Model | HQ-20J |
| Bucket Volume | 0.05 m³ |
| Machine Weight | 2000 KG |
| Minimum Turning Radius | 1350 MM |
| Walking Speed | 0-3 KM/H |
| Swing Angle | 360° |
| Climbing Gradient | 30° |
| Product Size (LxWxH) | 3250*1100*2300 MM |
| Track Width | 180 MM |
| Ground Clearance | 370 MM |
| Max Digging Height | 3200 MM |
| Max Discharge Height | 2300 MM |
| Max Digging Depth | 2200 MM |
| Max Digging Radius | 3360 MM |
| Bulldozer Max Depth | 190 MM |
| Bulldozer Raising Height | 260 MM |
ENGINE SPECIFICATIONS
| PARAMETER | SPECIFICATION |
|---|---|
| Engine Model | Yanmar / Kubota (Standard) |
| Rated Power | 10.3 KW |
