Highly Efficient & Multi-Functional – Ideal for road construction, ground compaction, and trench backfilling, delivering outstanding compaction performance.
Powerful & Fuel-Efficient – Equipped with high-performance engines for strong power output and excellent fuel efficiency, adaptable to various terrains.

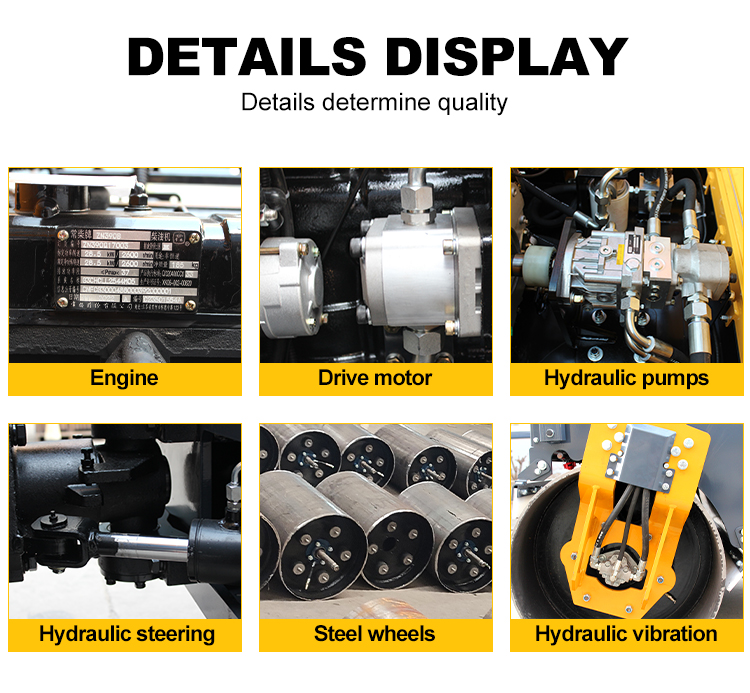

Durable & Reliable – Built with reinforced steel and high-strength vibration drums, ensuring robust durability and a long service life.
Hassle-Free Warranty – Enjoy a one-year or 2,000 working hours warranty. If any quality issues arise, we provide free replacement parts.
Customized Solutions – Personalize your roller with custom colors, logos, engines, and more, making your equipment unique and tailored to your needs.
| PARAMETER | SPECIFICATION | PARAMETER | SPECIFICATION |
|---|---|---|---|
| Model | HQ-YL12T | Walking Speed | 2-10.5 KM/H |
| Drum Width | 2100 MM | Vibration Frequency | 51 Hz |
| Drum Diameter | 1400 MM | Vibration Force | 260/160 KN |
| Working Weight | 12000 KG | Turning Radius | 7000 MM |
| Gradeability | 30% | Static Line Load | 280 N/cm |
| Start Form | Electric Start | Drum Rim Thickness | 24 MM |
| Product Size | 5650*2280*3000 MM | Drive Form | Hydrostatic rear wheel drive |
ENGINE SPECIFICATIONS
| PARAMETER | SPECIFICATION |
|---|---|
| Engine Model | Cummins QSB5.9 |
| Diesel Speed | Not specified |
| Engine Power | 97 KW |
| Fuel Tank Capacity | 220 L |
