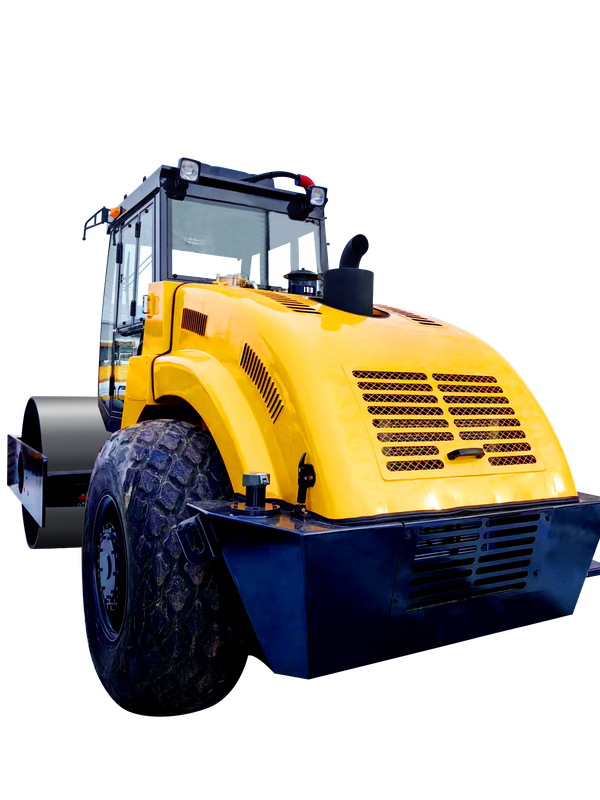

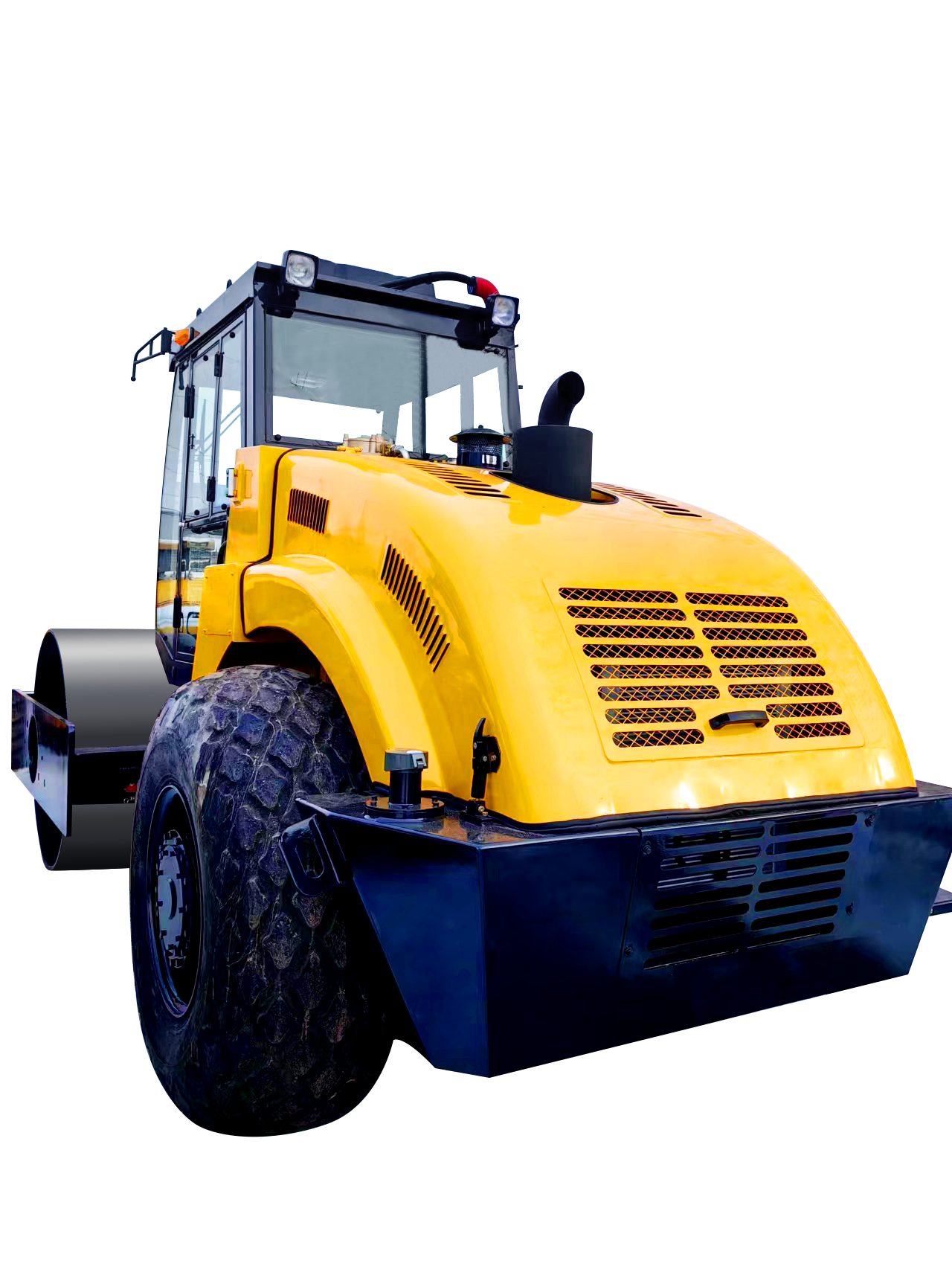

This machine significantly reduces project timelines through its superior compaction force and wider drum coverage. Fewer passes mean faster completion, lower fuel costs, and reduced labor hours—translating directly into higher profit margins per project.
Constructed with heavy-duty components and a robust frame, this roller is engineered to withstand continuous operation in tough conditions. Minimal downtime, easy maintenance access, and reliable performance ensure long-term operational savings and stronger ROI.
| MAIN SPECIFICATIONS | VALUE | PERFORMANCE SPECIFICATIONS | VALUE |
|---|---|---|---|
| Model | HQ-YL20T | Walking Speed | 10.5 KM/H |
| Drum Width | 2100 MM | Vibration Frequency | 30 Hz |
| Drum Diameter | 1570 MM | Vibration Force | 410/300 KN |
| Working Weight | 20000 KG | Turning Radius | 7500 MM |
| Gradeability | 30% | Static Line Load | 500 N/cm |
| Start Form | Electric Start | Nominal Amplitude | 1.9/0.95 MM |
| Product Size | 6435*2300*3090 MM | Drive Form | Hydrostatic rear wheel drive |
| Engine Model | WP6G190E301 | Engine Type | National IV diesel engine |
| Engine Power | 140 KW | Wheelbase | 3380 MM |
