Vibratory Drum: Enhances soil compaction with 70Hz frequency for efficient road construction.
Compact Design: Robust yet compact, ideal for diverse terrains and confined spaces.

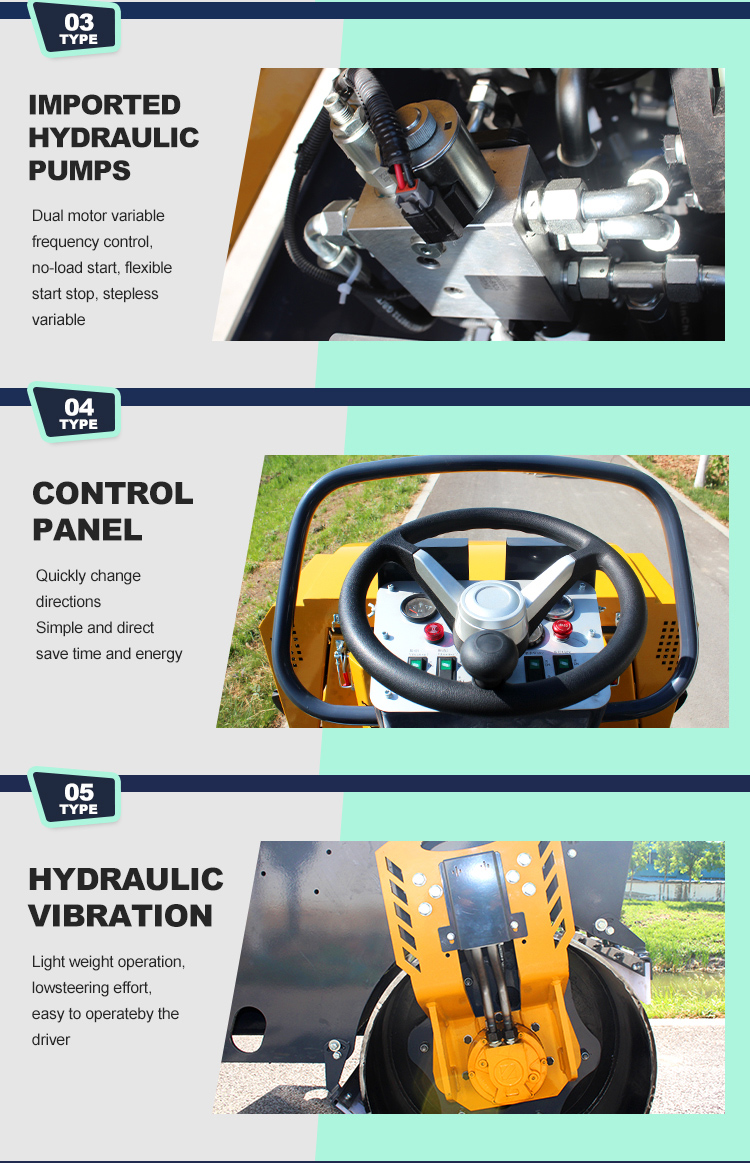

Hydraulic Transmission: Ensures smooth and controlled operation for extended use.
Electric Start: Easy and reliable start-up for quick deployment on-site.
Durable Steel Wheels: wheels ensure long-lasting performance.

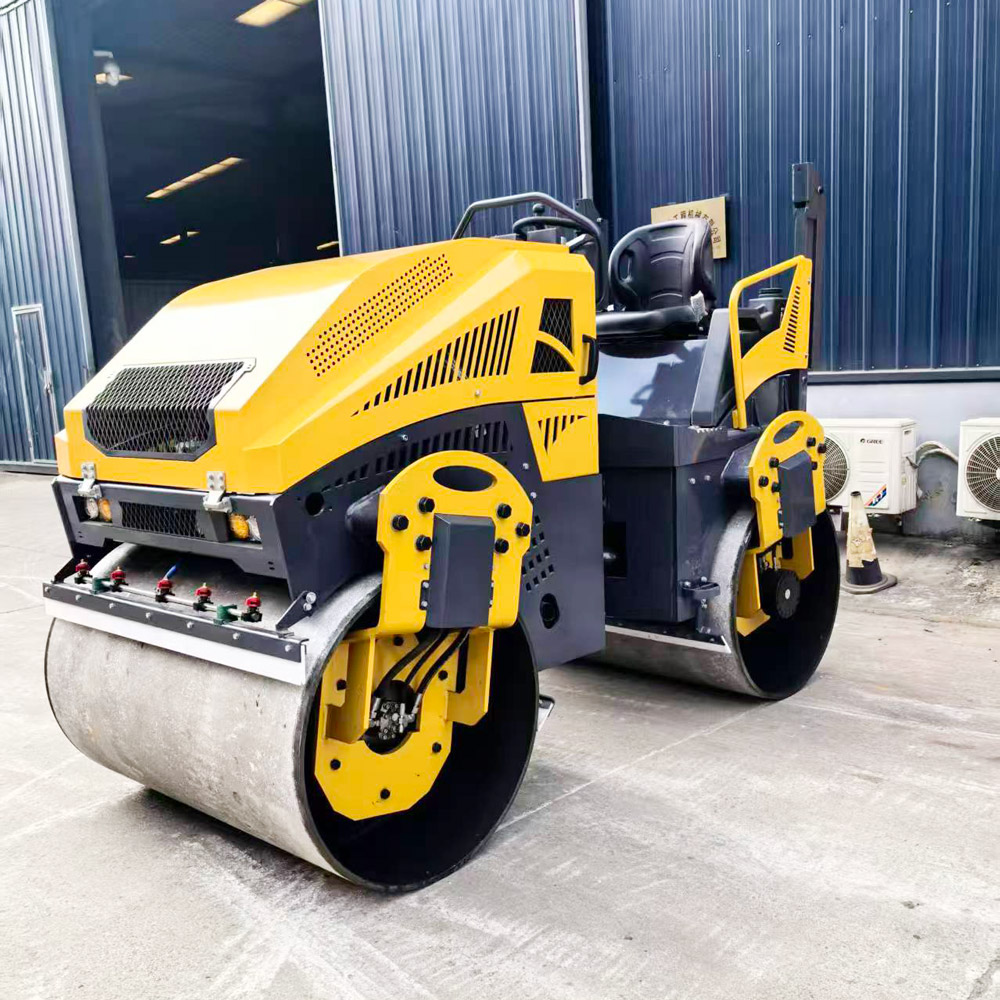

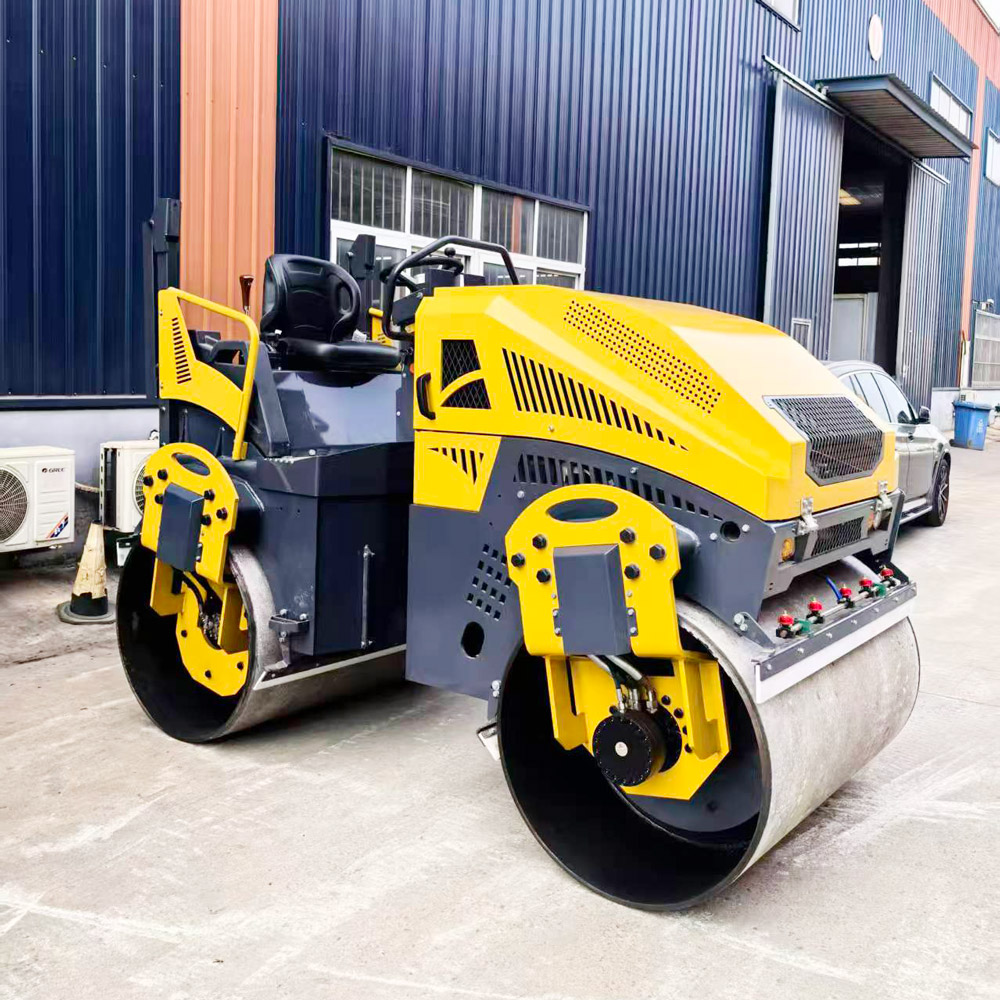

Double-drum vibratory roller model | HQ-1400 |
Operating weight | 4500kg |
Maximum operating weight | 4700kg |
Overall dimensions, mm: | |
Length - | 3000mm |
Width - | 1550mm |
Height - | 2900mm |
Transmission - Hydrostatic all-wheel drive | Yes |
Static linear load, N/cm: | |
Mode 1 - | 178 |
Mode 2 - | 208 |
Vibration frequency, Hz: | |
Mode 1 - | 70 |
Mode 2 - | 70 |
Centrifugal force, kN: | |
Mode I - | 50 |
Mode II - | 50 |
Nominal amplitude, mm | 0.6 |
Drum diameter, mm | 900 |
Drum width, mm - | 1400 |
Working speed, km/h - | 0-12 |
Maximum climbability, % | 30 |
Maximum turning radius (outside), mm | 4200 |
Ground clearance, mm | 300mm |
Wheelbase, mm - | 2000 |
Steering angle, deg - | 30 |
Oscillation angle, deg - | 8 |
Engine - Diesel | Yes |
Rated engine power, kW | 36.8kw |
Fuel tank capacity, l | 80 |
Volume Water tank capacity, l | 150 |
Available options for additional ordering | |
Roller scrapers - | Yes |
Front and rear roller vibrators – | Yes |
Vibration-isolated operator platform – | Yes |
Two multifunctional joysticks – | Yes |
Control panel with LCD display and vandal-resistant protection – | Yes |
Operator platform canopy – | Yes |
Edge trimmer – | Yes |
Centralized fluid drain – | Yes |
Adjustable interval water irrigation system, wind-protected nozzles – | Yes |
A central crane lifting eye, front and rear winch lifting eyes, easy-to-reach lashing eyes and a wrench-less folding ROPS are included. | Yes |
Roadside lighting kit – | Yes |
Rotating beacon – | Yes |
