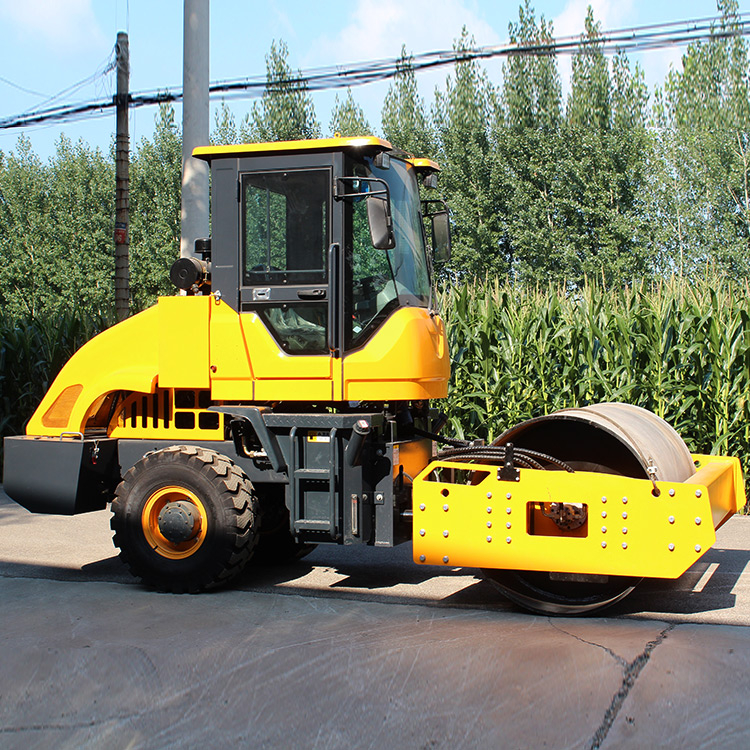

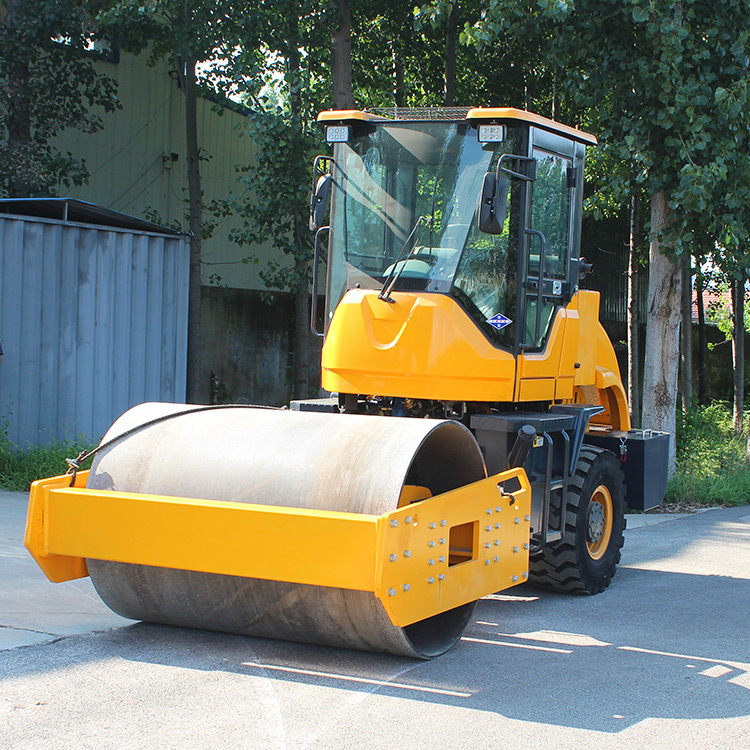

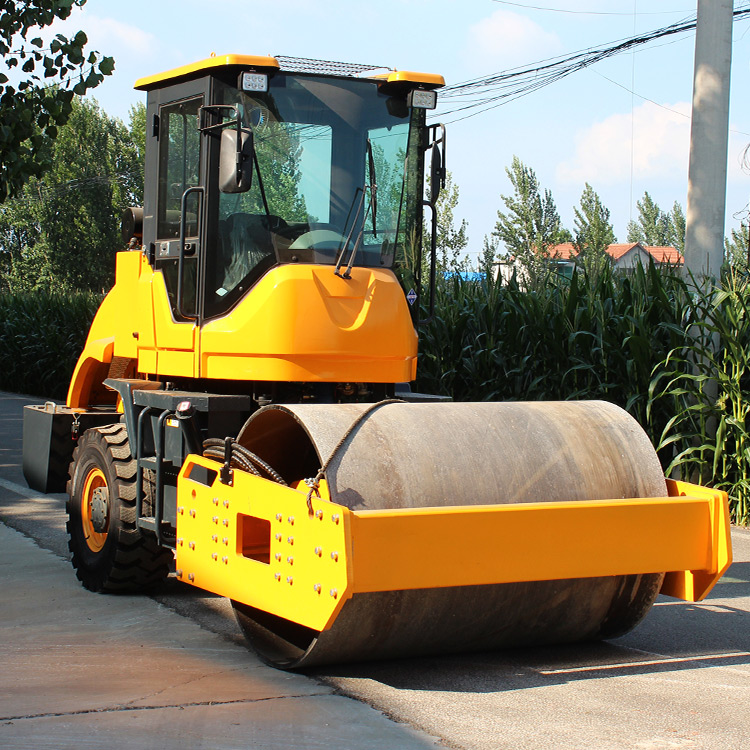

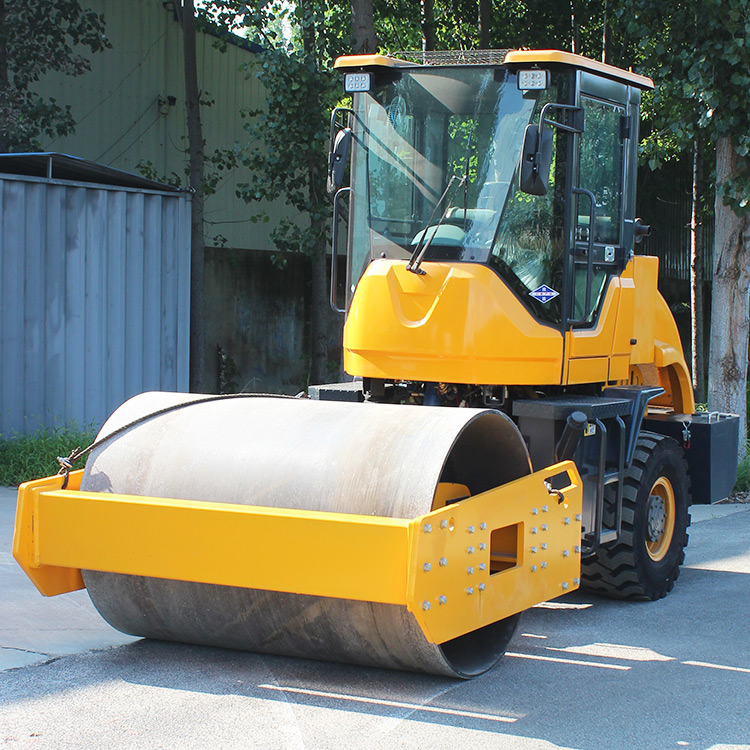

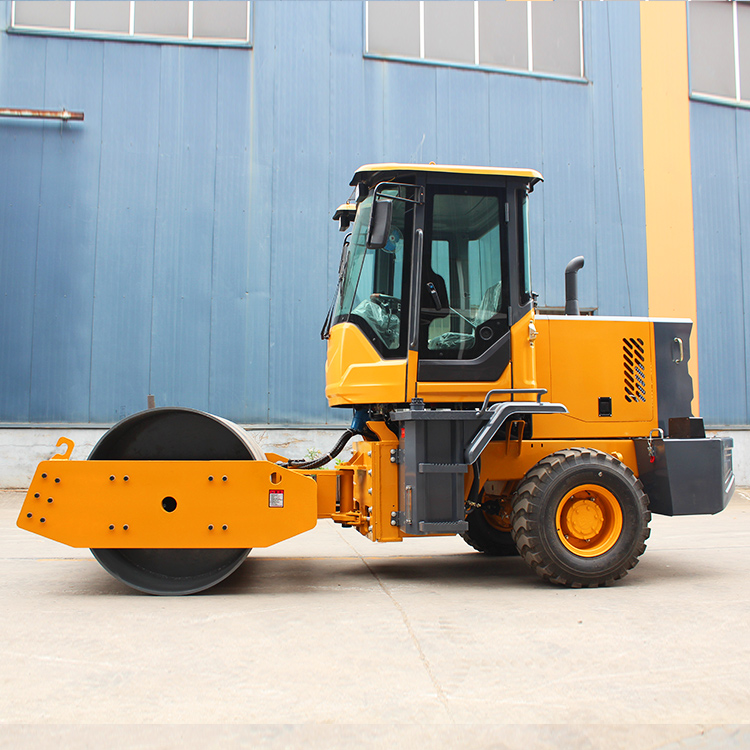

HQ-YL6000 Asphalt Road Roller Compactor Machine

The Single Steel Wheel Paver Roller is a sturdy and high-performing compaction machine designed for a wide range of road construction and compaction tasks. It is available with either a reliable Changchai or Changfa 390 engine, providing an impressive power output of 36.8kw, ensuring exceptional performance and efficiency.

Model:
HQ-YL6000 road roller
Brand:
HUAQI

Availability:

Quantity:



Inquire Add to Basket

Asphalt Compactor Machine road roller compactor road roller machine

Product Description

详情页通用图

Asphalt Road Roller Compactor Machine 6.0 Ton Roller Brand New Vibratory Road Roller

The Single Steel Wheel Paver Roller is a sturdy and high-performing compaction machine designed for a wide range of road construction and compaction tasks. It is available with either a reliable Changchai or Changfa 390 engine, providing an impressive power output of 36.8kw, ensuring exceptional performance and efficiency. Operating at speeds ranging from 2 to 12 km/h, the offers versatility and excellent maneuverability on various terrains. With an outstanding climbing ability of 30%, it can handle steep inclines and challenging working environments with ease. The paver roller is equipped with a nominal amplitude of 0.7 mm and operates at a vibration frequency of 75 Hz, delivering effective and consistent compaction results. The powerful excitation force of 80 KN ensures optimal compaction efficiency, achieving superior density for different construction materials.

Parameter	Value	Parameter	Value
Name	HQ-YL6000 Single Steel Wheel Paver Roller	Engine Brand	Yunnei
Travel Speed	2-12 km/h (Forward/Reverse)	Engine Model	490
Climbing Ability	30%	Engine Power	36.8 kw
Nominal Amplitude	0.6 mm	Vibration Frequency	75 Hz
Excitation Force	120 KN	Static Linear Load	90 N/cm
Vibration Mode	Hydraulic Vibration	Fuel Consumption Rate	≤ 310 g/kWh
Starting Method	Electric Start	Steel Wheel Width	1650 mm
Operating Weight	6000 kg	Steel Wheel Diameter	1100 mm
Fuel Tank Capacity	85 L	Exterior Dimensions	455018902750mm
