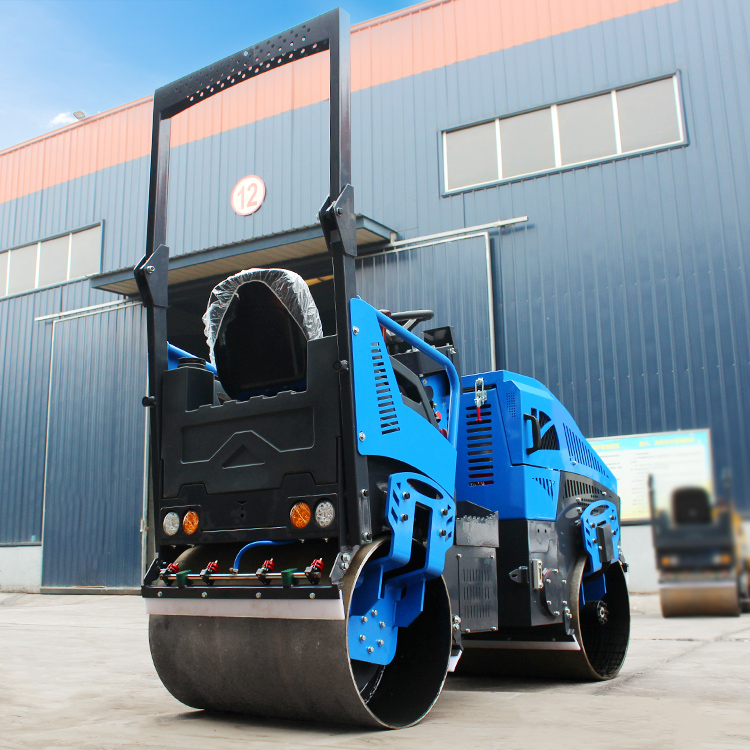

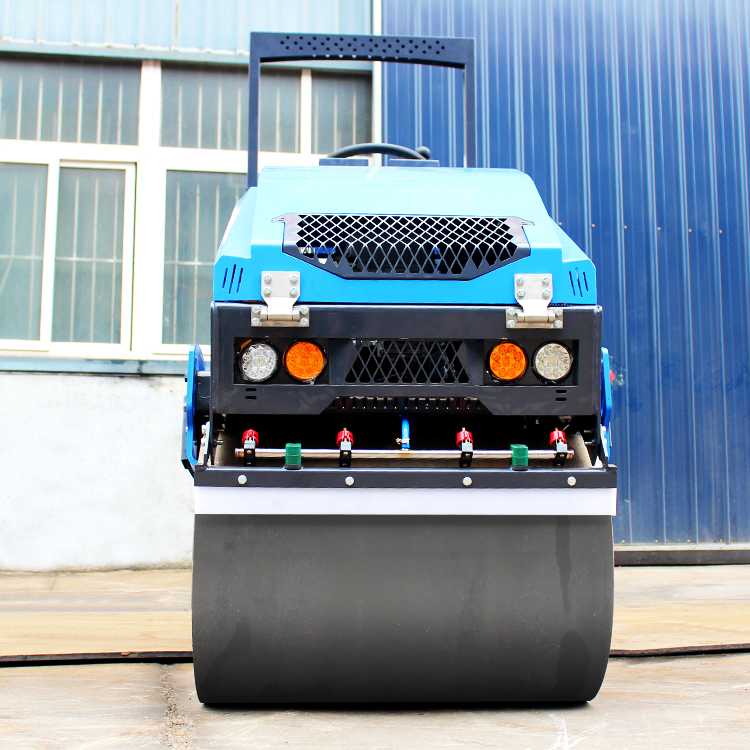

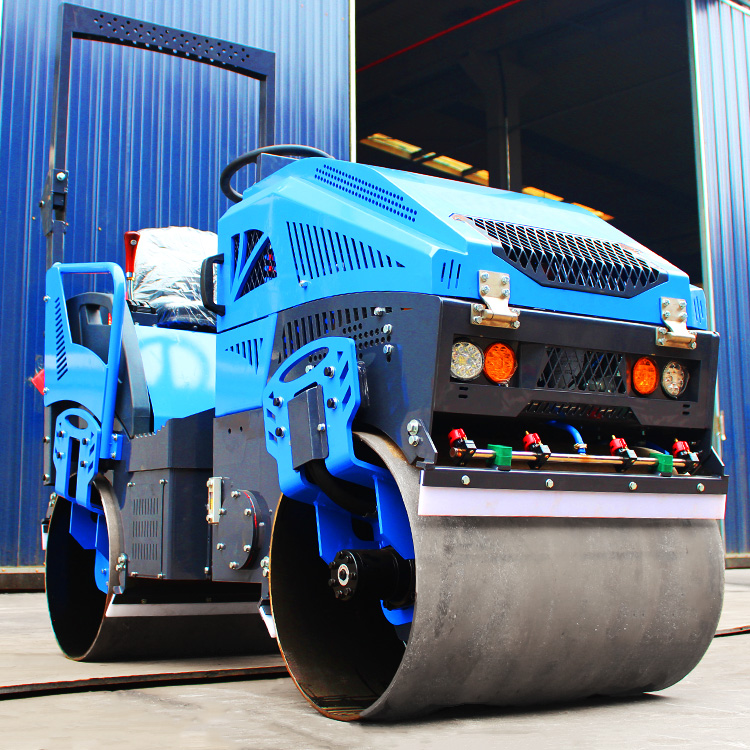

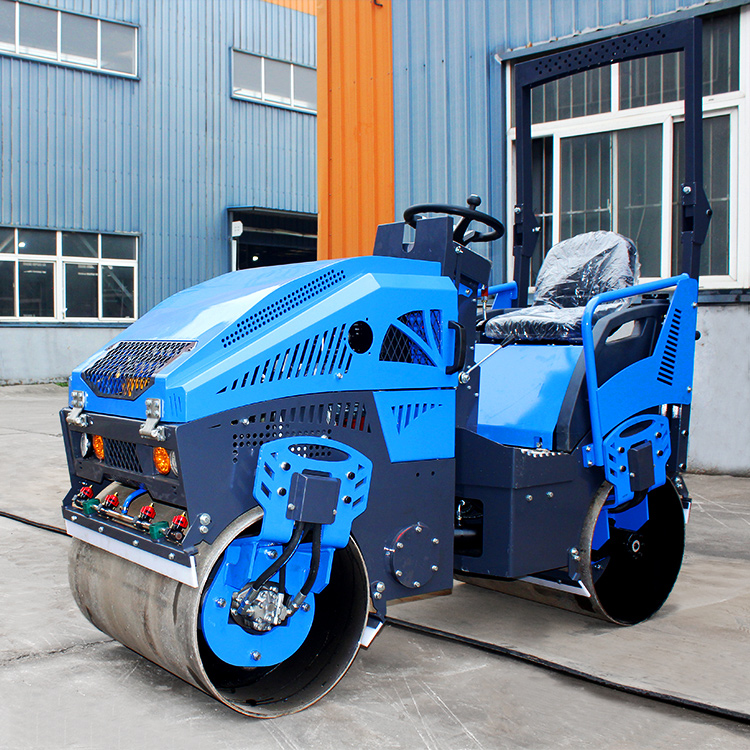

HQ-YL800Plus Industrial Compactor Roller

Double Drum Vibratory Roller adopts single-cylinder,water-cooled diesel engine.The compaction width is 1000mm and the exciting force is 35kn.

Model:
HQ-YL800Plus Road Roller
Brand:
HUAQI

Availability:

Quantity:



Inquire Add to Basket

Compactor Roller road roller 1 ton diesel road roller

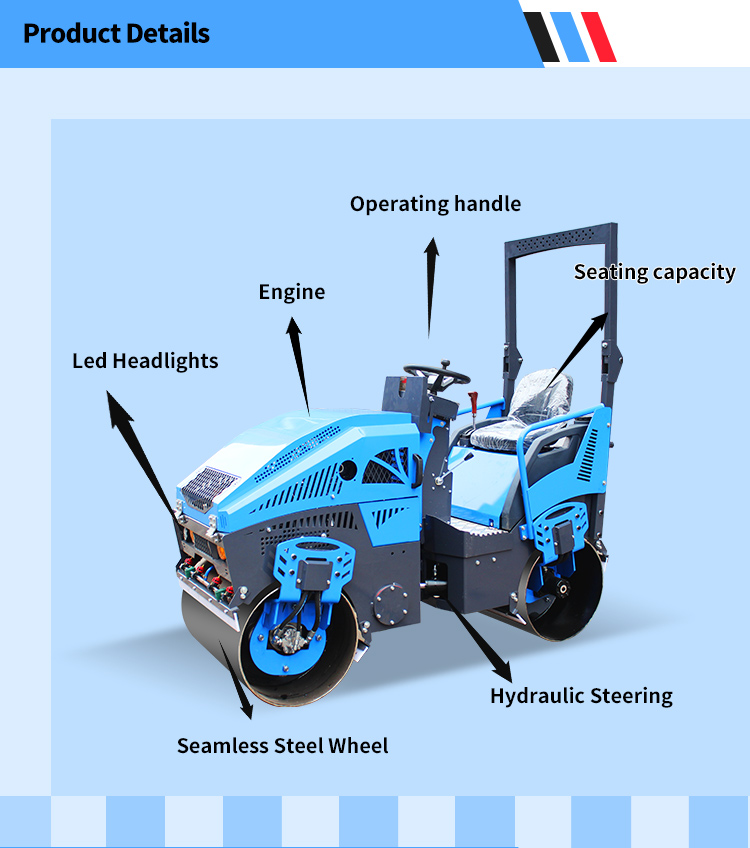

Product Description

Industrial Compactor Machine Small Hydraulic 1 Ton Compactor Vibratory Double Drum Road Roller

Double Drum Vibratory Roller adopts single-cylinder,water-cooled diesel engine.The compaction width is 1000mm and the exciting force is 35kn. Equipped with imported DANFOSS hydraulic drive system, infinitely variable speed, reversing conveniently, long lifetime.Hydraulic steering, articulated frame for flexible operation. Our steel wheel road roller is widely used for compaction of asphalt surface layer, crushed stone, sand and applied to mend and maintain various roads,expressway, roadside, parking area and other road construction project.

PARAMETER	SPECIFICATION	PARAMETER	SPECIFICATION
Model	HQ-YL800Plus	Walking Speed	0-6 KM/H
Drum Width	800MM * 2	Static Line Load	60N/75N/cm
Drum Diameter	560MM * 2	Nominal Amplitude	0.5 MM
Working Weight	1500 KG	Vibration Frequency	70 Hz
Gradeability	0.3	Vibration Force	30 KN
Water Tank Volume	55 L	Drive Form	Hydrostatic Transmission

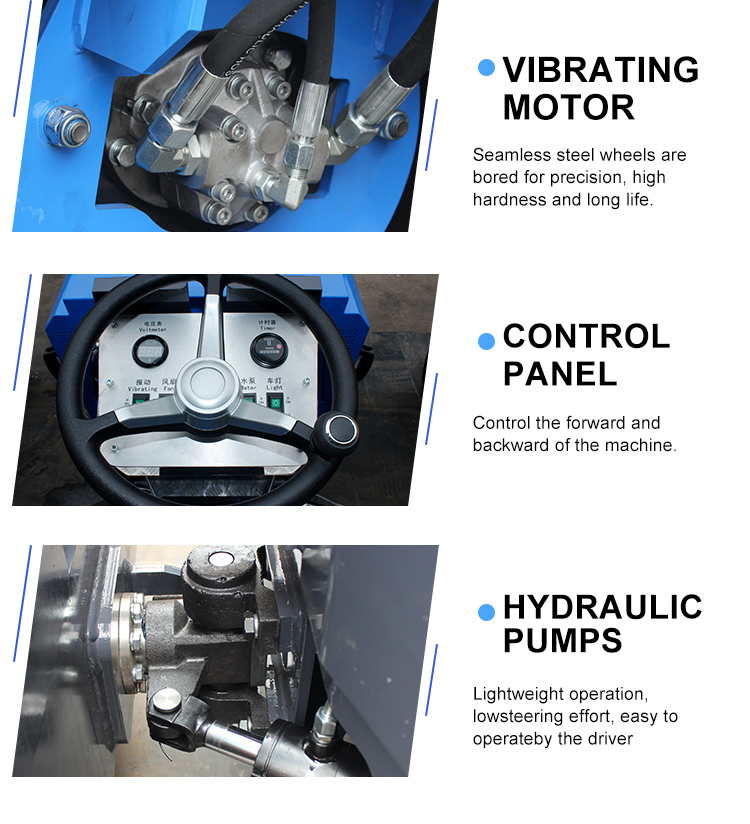

Package Size	240011501500 MM	Vibration Form	Hydraulic vibration (Danfoss motor)
ENGINE SPECIFICATIONS
PARAMETER	SPECIFICATION

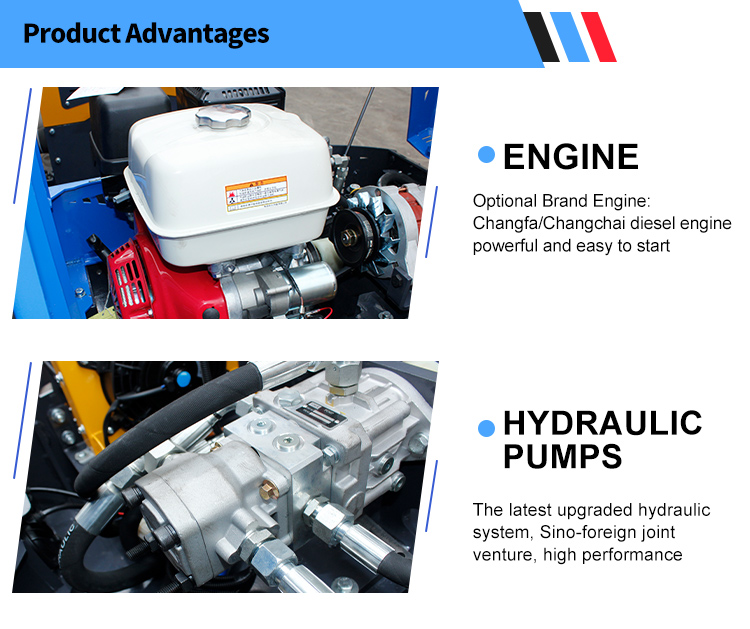

Engine Model	Not specified
Engine Power	8.2 KW / 11 HP
Fuel Tank Capacity	5.5 L
Fuel Consumption	≤300 g/kw.h
